MA3207F RND

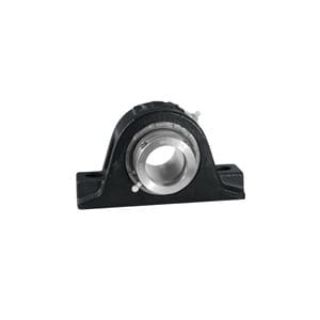

Picture of MA3207F RND
Actual Product May Vary From Image

Product Details

Manufacturer:
Rexnord
Manufacturer part number:
MA3207F
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,506.34 / EA

Description

Brand Name

Rex®

Type

Medium Duty

Description

Rex® Pillow Block Spherical Roller Bearing, Medium Duty, Series: 3000, 2-7/16 in Bore, 7-1/8 in Bolt Center-to-Center Length, 2-3/4 in Base to Bore Centerline, 9-1/4 in Overall Length, 3-21/32 in Overall Width, 5-1/2 in Overall Height, Four-Bolt Base Mounting, Round Bore, 3-3/8 in Base Width, Eccentric Cam Collar Locking Device, Spring-Loaded/Heavy Contact Seal, Non-Expansion (Fixed) Expansion, 43240 lb Dynamic/53500 lb Static Load, 225 deg F, 2000 rpm Maximum, Cast Iron, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

  • Easy bearing clearance adjustment
  • Replaceable bearing
  • Pre-lubricated with standard grease for normal operation
  • Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
  • Rugged housing
  • Additional shaft holding power
  • Accommodates undersized shafting
  • Economica

Specifications

Base to Bore Centerline:2-3/4 in
Base Width:3-3/8 in
Bolt Center-to-Center Length:7-1/8 in
Bore Diameter:2-7/16 in
Bore Type:Round
Expansion Type:Non-Expansion (Fixed)
Finish:Powder Coated
Load Capacity:43240 lb Dynamic/53500 lb Static
Locking Device:Eccentric Cam Collar
Material:Cast Iron
Maximum Speed:2000 rpm
Mounting Type:Four-Bolt Base
Overall Height:5-1/2 in
Overall Length:9-1/4 in
Overall Width:3-21/32 in
Seal Type:Spring-Loaded/Heavy Contact
Series:3000
Temperature Rating:225 deg F
