MA6307F RND

Name: MA6307F RND
Brand: Rexnord
SKU: MA6307F RND
Price: 2,653.53 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

MA6307F

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$2,653.53 / EA

Description

Brand Name

Rex®

Type

Heavy Duty

Description

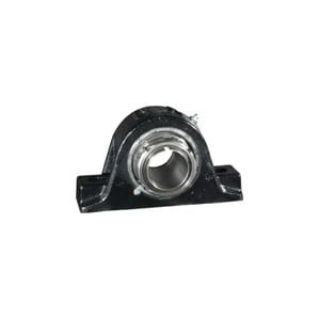

Rex® Pillow Block Spherical Roller Bearing, Heavy Duty, Series: 6000, 3-7/16 in Bore, 10 in Bolt Center-to-Center Length, 3-3/4 in Base to Bore Centerline, 13 in Overall Length, 5-1/32 in Overall Width, 7-1/2 in Overall Height, Four-Bolt Base Mounting, Round Bore, 4-1/8 in Base Width, Shurlok® Adapter Mount Locking Device, Spring-Loaded/Heavy Contact Seal, Non-Expansion (Fixed) Expansion, 84330 lb Dynamic/90700 lb Static Load, 225 deg F, 1400 rpm Maximum, Cast Iron, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

Easy bearing clearance adjustment
Replaceable bearing
Pre-lubricated with standard grease for normal operation
Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
Rugged housing
Spyglass Optical Strain Sensor (OSS) technology
Full bore contact for maximum shaft holding power, concentricity and running accuracy
Accommodates undersized shafting
Easily removable

Specifications

Base to Bore Centerline:	3-3/4 in
Base Width:	4-1/8 in
Bolt Center-to-Center Length:	10 in
Bore Diameter:	3-7/16 in
Bore Type:	Round
Expansion Type:	Non-Expansion (Fixed)
Finish:	Powder Coated
Load Capacity:	84330 lb Dynamic/90700 lb Static
Locking Device:	Shurlok® Adapter Mount
Material:	Cast Iron
Maximum Speed:	1400 rpm
Mounting Type:	Four-Bolt Base
Overall Height:	7-1/2 in
Overall Length:	13 in
Overall Width:	5-1/32 in
Seal Type:	Spring-Loaded/Heavy Contact
Series:	6000
Temperature Rating:	225 deg F
