MAD0801230R5 HOF

Product Details

Manufacturer:
Manufacturer part number:
MAD0801230R5
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 5 days
Estimated dates are contingent upon manufacturer stock.

Description

Type

Mild Steel Wall Mounted Industrial Enclosures

Description

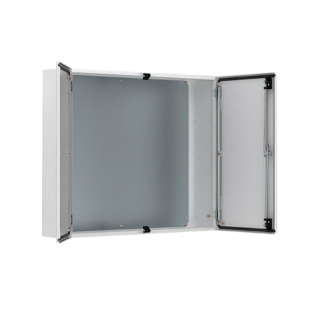

Double Door Enclosure, MAD, 31.50x47.24x11.81, Lt Gray, Mild Steel

Application

Controls and Drives; Factory Automation and Process Control

Specifications

Body Thickness (Imperial):16 ga
Body Thickness (Metric):1.5 mm
Cable Entry:No
Color:Light Gray
Color Code:RAL 7035
Construction:Body: 16 gauge Door: 14 gauge
Country of Origin:MX
Cubic Capacity:10 Cu-ft
Depth:11.81
Door Thickness (Imperial):14 ga
Door Thickness (Metric):2 mm
Finish:Powder Coated
Harmonized Code:7326908688
Height:31.5
Insulation:No
Material:Mild Steel
Mounting:Wall Mounted
NEMA Rating:NEMA Type 12 NEMA Type 13
Number of Outlet:1
Panel Size (Imperial):30.31 x 45.28 in
Panel Size (Metric):770 x 1150 mm
Protection Rating:NEMA Type 12
Size:31.5 x 47.24 x 11.81 inch
Weight (Imperial):140.77 lb
Width:47.24
With or Without Panel:With

Resources

Products Specifications

Brand Name
Hoffman
Material
Mild Steel
