MAGNET-43-27 RUL

Product Details

Manufacturer part number:
MAGNET-43-27
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - LEXINGTON
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.

Description

Type

Magnet Bases

Description

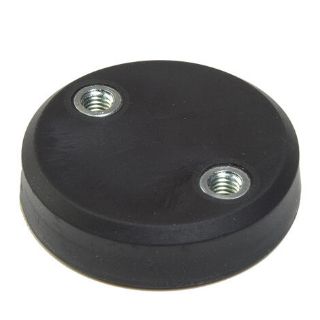

This Ruland magnetic base is a component in a system used to mount sensors, screens, reflectors, plexiglass machine guards, and other industrial components. It can be mounted without hardware to sheet metal, extruded aluminum framing, and other objects protecting these surfaces from unwanted damage. The high magnetic forces work well when in use, however can easily be overcome by hand making for portability in systems where components frequently need to be moved, adjusted, replaced, or removed. It is designed to mate with Ruland flanged bolt bases, two-way base connectors, and one-way connectors. This magnetic base is made of neodymium, iron, and boron and it is covered with a rubber jacket. It is RoHS compliant.

Note

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Specifications

Center to Center (LC):27 mm
Conflict Minerals:Compliant
Country of Origin:DE
Fastening Dimensions:Metric
Height (H1):10.3 mm
Inner Diameter (ID):39 mm
ISO 9001:2015:ISO 9001:2015 Certified
Magnetic Forces:85 N
Manufacturer:Otto Ganter
Outside Diameter (OD):43 mm
Prop 65:<img src="https://www.ruland.com/media/wysiwyg/prop-65.png"><b>WARNING</b> This product can expose you to the chemical Lead, known to the State of California to cause cancer and reproductive harm. For more information go to <a href="https://www.p65warnings.ca.gov/">www.P65Warnings.ca.gov</a>.
REACH:Compliant
RoHS3:Compliant
Tariff Code:8505.11.9000
Thread (TH):M5
Thread Depth (T):7 mm
Unit of Measurement:Metric
