MAS220372 RND

Name: MAS220372 RND
Brand: Rexnord
SKU: MAS220372 RND
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

MAS220372

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Rex®

Type

Floating Normal Duty

Description

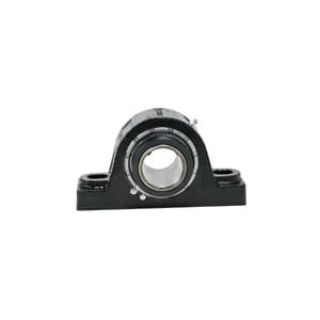

Rex® Pillow Block Spherical Roller Bearing, Floating Normal Duty, Series: 2000, 2-3/16 in Bore, 6-3/4 in Bolt Center-to-Center Length, 2-1/2 in Base to Bore Centerline, 8-7/8 in Overall Length, 3-5/16 in Overall Width, 5 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-9/16 in Base Width, Single Set Screw Collar Locking Device, Spring-Loaded/Heavy Contact Seal, Expansion Expansion, 36370 lb Dynamic/44400 lb Static Load, 225 deg F, 2200 rpm Maximum, Cast Steel, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

Easy bearing clearance adjustment
Replaceable bearing
Pre-lubricated with standard grease for normal operation
Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
Rugged housing
Simplest installation
Most economical

Specifications

Base to Bore Centerline:	2-1/2 in
Base Width:	2-9/16 in
Bolt Center-to-Center Length:	6-3/4 in
Bore Diameter:	2-3/16 in
Bore Type:	Round
Country of Origin:	US
Expansion Type:	Expansion
Finish:	Powder Coated
Load Capacity:	36370 lb Dynamic/44400 lb Static
Locking Device:	Single Set Screw Collar
Material:	Cast Steel
Maximum Speed:	2200 rpm
Mounting Type:	Two-Bolt Base
Overall Height:	5 in
Overall Length:	8-7/8 in
Overall Width:	3-5/16 in
Seal Type:	Spring-Loaded/Heavy Contact
Series:	2000
Temperature Rating:	225 deg F
