MAS2400 RND

Name: MAS2400 RND
Brand: Rexnord
SKU: MAS2400 RND
Price: 3,393.26 USD
Availability: OutOfStock

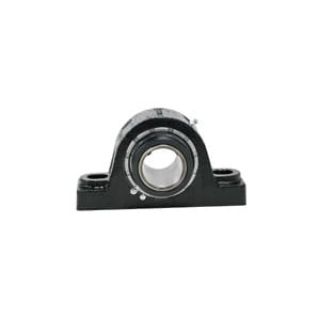

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

MAS2400

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$3,393.26 / EA

Description

Brand Name

Rex®

Type

Floating Normal Duty

Description

Rex® Pillow Block Spherical Roller Bearing, Floating Normal Duty, Series: 2000, 4 in Bore, 10-7/8 in Bolt Center-to-Center Length, 4-1/8 in Base to Bore Centerline, 14-1/4 in Overall Length, 5-1/16 in Overall Width, 8-1/2 in Overall Height, Two-Bolt Base Mounting, 4-1/8 in Base Width, Single Set Screw Collar Locking Device, Spring-Loaded/Heavy Contact Seal, Expansion Expansion, 130970 lb Dynamic/137000 lb Static Load, 225 deg F, 1200 rpm Maximum, Cast Iron

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

Easy bearing clearance adjustment
Replaceable bearing
Pre-lubricated with standard grease for normal operation
Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
Rugged housing
Simplest installation
Most economical

Specifications

Base to Bore Centerline:	4-1/8 in
Base Width:	4-1/8 in
Bolt Center-to-Center Length:	10-7/8 in
Bore Diameter:	4 in
Expansion Type:	Expansion
Load Capacity:	130970 lb Dynamic/137000 lb Static
Locking Device:	Single Set Screw Collar
Material:	Cast Iron
Maximum Speed:	1200 rpm
Mounting Type:	Two-Bolt Base
Overall Height:	8-1/2 in
Overall Length:	14-1/4 in
Overall Width:	5-1/16 in
Seal Type:	Spring-Loaded/Heavy Contact
Series:	2000
Temperature Rating:	225 deg F
