MBL100120 APN

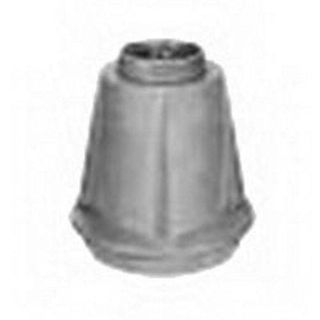

Appleton® Mercmaster™ Jr. MBL100-120 HX-HPF Ballast Body, S54 Medium Base High Pressure Sodium Lamp, 100 W Lamp, 120 VAC, 7 in W
Manufacturer: Appleton
Manufacturer part number: MBL100-120
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Appleton®

Type

HX-HPF

Description

Appleton® Mercmaster™ Jr. Ballast Body, HX-HPF, S54 Medium Base High Pressure Sodium Lamp, 100 W Lamp, 115 W Wattage, 120 VAC, 1.1 A Starting, 1 A Operating, 25 deg C, For Use With: V-51™ Series Mounting Hood and Refractor or Globe, 7 in Width, 5.78 in Height, Copper Free Aluminum, Epoxy Powder Coated

Application

Used in wet locations

Standards

UL File No. E10444 | UL 1598 | UL 1598A | UL 844 | UL Listed for Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III

Features

  • Wireless design - threading the fixture unit onto the mounting hood makes the electrical connection
  • The only wiring required is attaching two wires to the connection block in the mounting hood
  • Safe, easy servicing without disconnecting any wiring
  • Standard pendant mounting hood for rigid or flexible mounting
  • Balanced round design automatically hangs plumb when used with flexible hanger
  • Unitized construction reduces installation and maintenance costs
  • Ballast has standard non-PCB biodegradable capacitors
  • Porcelain socket ensures trouble free operation in high ambient installations
  • For use in hazardous locations, enclosed and gasketed HID lighting fixtures for use in tunnels, walkways, bridges, storage facilities, processing plants, parking lots, foundries, manufacturing plants, power plants and other locations subject to moisture, dirt, dust or corrosive atmospheres
  • 90% minimum power factor

Specifications

Amperage Rating:1.1 A Starting, 1 A Operating
Country of Origin:MX
Finish:Epoxy Powder Coated
Height:5.78 in
Lamp Type:S54 Medium Base High Pressure Sodium
Lamp Wattage:100 W
Material:Copper Free Aluminum
Suitable For Use With:V-51™ Series Mounting Hood and Refractor or Globe
Temperature Rating:25 deg C
Voltage Rating:120 VAC
Wattage:115 W
Width:7 in
