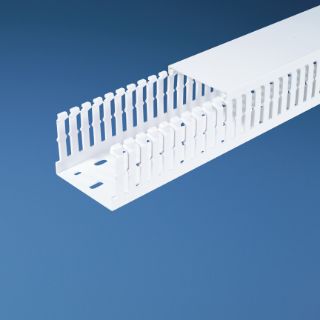

Picture of MC50X100WH2 PAN
Actual Product May Vary From Image

MC50X100WH2 PAN

Panduit® MC50X100WH2 Type MC Metric Slotted Wiring Duct, 5 mm W Slot Narrow Slot, 1.95 in W x 3.94 in D, PVC
Manufacturer: Panduit
Manufacturer part number: MC50X100WH2
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$56.02

Product Details

Brand Name

Panduit®

Type

Type MC Metric

Description

Panduit®, MC50X100WH2, Slotted Wiring Duct, Type MC Metric, 1.95 in Width, 3.94 in Depth, 2 m Length, 0.07 in Thickness, Narrow Slot, 5 mm W Slot, DIN Rail/Hole/Threaded Mounting, No Adhesive Backed, PVC, White

Application

Indoor Applications

Standards

ARRA Compliant | Buy American Act Compliant | CE 2006/95/EC | CSA C22.2 File No. 18.5-13 | cULus Listed | DIN 43659 | EN 50085-1/50085-2-3 | IEC 60332-1 | NFPA 79-2007/79-2015 | RoHS Compliant | UL 1565 File No. E147128 | UL Listed | UL94 V-0 Flammability Rating

Features

  • Metric PVC narrow finger and slot design closely matches the spacing of high density component
  • Upper and lower scorelines allows easy finger and sidewall section removals
  • Provided with DIN 43 659 mounting holes

Specifications

Adhesive Backed:No
Color:White
Country of Origin:US
Depth:3.85 in
Length:2 m
Material:PVC
Mounting Type:DIN Rail/Hole
Slot Size:0.2 in
Slot Type:Narrow
Thickness:0.07 in
Width:1.95 in
