MD25C CPLG 1/4X1/4 LOV

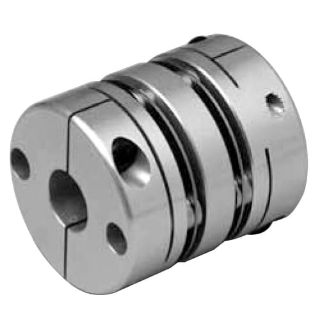

Lovejoy® 68514477215 MD Series Mini Disc Clamp Screw Style Coupling, 1/4 in Dia Bore, 0.984 in OD, 1.22 in OAL, 9 in-lb Torque, 8000 rpm Max
Manufacturer: Lovejoy
Manufacturer part number: 68514477215
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$234.81

Product Details

Brand Name

Lovejoy®

Type

Mini Disc Clamp Screw Style

Description

The MD (mini disc) Series Coupling features a higher torque capacity over elastomeric Coupling types. The MD Series one-piece clamping design allows for easy removal and assembly. The aluminum hubs and stainless steel disc materials allow for excellent resistance to oil and other chemicals. The MD Series design offers moderate torsional stiffness for applications requiring repeatability. The MD Series also offers up to 0.02 in of axial misalignment.
Lovejoy® Coupling, Mini Disc Clamp Screw Style, Series: MD Series, 1/4 in Bore, 0.984 in OD, 1.22 in Overall Length, 0.394 in Length Through Bore, 9 in-lb Torque, 8000 rpm Maximum, 300 deg F, Stainless Steel Disc/Aluminum Hub

Application

For motion control applications

Standards

ACMA Certified | ECCN EAR99 | EPTDA Approved | FPDA Motion and Control Network Member | Member of Hydraulic Institute | MPTA Standard | NFPA Member | PTDA Approved

Features

  • Zero backlash design
  • Moderate torsional stiffness
  • Aluminum hubs with stainless steel discs
  • Moderate high torque capabilities
  • Without keyway

Specifications

Bore Diameter:1/4 in
Country of Origin:JP
Length Through Bore:0.394 in
Material:Stainless Steel Disc/Aluminum Hub
Maximum Speed:8000 rpm
Outside Diameter:0.984 in
Overall Length:1.22 in
Series:MD Series
Temperature Rating:300 deg F
Torque Rating:9 in-lb
