MD2DS3034F APN

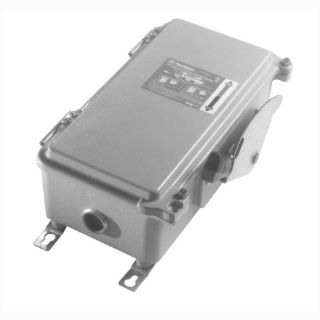

Picture of MD2DS3034F APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
MD2DS3034F
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$5,512.10 / EA

Description

Brand Name

Appleton®

Type

Factory Sealed Fused Class J Fuse

Description

Appleton® MD2DS Series disconnect switches are factory sealed for ease of installation, no external seals are required. They provide safe circuit disconnect or motor control in hazardous areas. These switches are available in 30, 60 and 100 A models, both non-fused and fused (fuses are not included).
Appleton® Disconnect Switch, Factory Sealed Fused Class J Fuse, Series: MD2DS, 600 VAC, 30 A, 20 hp, 3 Phase, 3 Pole, 3 Wires, 3PST, Handle Actuator, NEMA 3/3R/4/4X/12/IP66, Keyhole Mount, 19.25 in H x 11.56 in W x 11 in D, Copper Free Aluminum, Gray, Epoxy Powder Coated

Application

Used to functions as load disconnect switch or as individual motor control switch

Standards

ARRA Compliant | Buy American Act Compliant | NEC Class I, Div 2, Groups B, C, D | Class II, Div 1 and 2, Groups F, G | Class III | Class I, Zone 2, Group IIC, T3, IP66 | UL 98, UL File No. E160652

Features

  • Factory sealed, external seals not required
  • Insulated, dual-color polymer operating handle clearly indicates the switch being energized
  • Removable hinged cover allows for ease of installation and maintenance
  • Short circuit withstand rated to 200000 RMS symmetrical amperes (Class J fusing)
  • Short circuit withstand rated to 10000 RMS symmetrical amperes (unfused)
  • Conduit entry is drilled and tapped to 1-1/2 in, reducer bushings 1-1/2 in to 1-1/4 in and 1-1/2 in to 1 in provided at no additional cost
  • Stainless steel key hole mounting feet for easy installation
  • Unit is equipped with defeatable door interlock which allows emergency access when switch is energized
  • Cover can be padlocked closed
  • Operating handle can be locked in the Off position with provision to lock in the On position
  • Ergonomically designed handle is made of high impact polymer material for exceptional ruggedness, durability and corrosion resistance

Specifications

Actuator Type:Handle
Amperage Rating:30 A
Color:Gray
Contact Form:3PST
Country of Origin:US
Dimensions:19.25 in H x 11.56 in W x 11 in D
Enclosure Type:NEMA 3/3R/4/4X/12/IP66
Finish:Epoxy Powder Coated
Horsepower:20 hp
Material:Copper Free Aluminum
Mounting Type:Keyhole
Number of Poles:3
Number of Wires:3
Phase:3
Series:MD2DS
Voltage Rating:600 VAC
