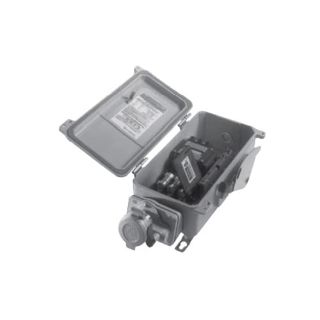

MD2SR6023F APN

Name: MD2SR6023F APN
Brand: Appleton
SKU: MD2SR6023F APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

MD2SR6023F

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Dead Front Fused

Description

Interlocked Receptacle and Disconnect Switch, Type Dead Front Interlocked, Constructional Feature Corrosion Resistant, Voltage Rating 240 VAC, Current Rating 60 A, Number of Poles 3, Number of Wires 2, Door Type Removable Hinged, Padlockable Cover, Fuse Provision Fusible, Class J, Hub Type 1-1/2 In, Grounding Style 2, Shell, Extra Pole, Material Epoxy Powder Coated Copper-Free Aluminum (Enclosure), Stainless Steel (Hardware), Enclosure Class I Div 2 Groups B C D, Class II Div 1 and 2 Group F G, Class III, Class I Zone 2 Group IIC, NEMA 3/3R/4/4X/9FG/12, Wire Size 8 to 4/0 AWG, Power Rating 10 hp at 240 VAC, Approval UL 894/1203/1604/1682/1686, Application Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump.

Appleton® Interlocked Switched Receptacle, Dead Front Fused, 240 VAC, 60 A, 10 hp, 3 Pole, 2 Wires, NEMA 3/3R/4/4X/9FG/12, Copper-Free Aluminum, 11.6 in W x 24.33 in H

Application

Lighting System, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pump

Standards

NEC Class I Division 2 Group B C D/Class II Division 1 and 2 Group F G/Class III/Class I Zone 2 Group IIC T3 | UL 894/1203/1604/1682/1686/E10784

Features

Factory sealed no external seals required
UL listed for use with Appleton® ACP plugs
UL Classified for use with competitors like plugs
Positive polarization only plugs of the same style, number of poles and amperage rating may be used with these receptacles
Plug must be inserted into the receptacle before the switch can be turned on
Plug cannot be withdrawn unless the switch is in the off position
Cover bolts are stainless steel and captive
Insulated, dual-color polymer operating handle clearly indicates the switch being energized
Style 2 (shell and extra pole) grounding
Removable hinged cover allows for ease of installation and maintenance
Short circuit withstand rated to 200,000 RMS symmetrical amperes (class J fusing)
Conduit entry is drilled and tapped to 1-1/2 in reducer bushings 1-1/2 to 1-1/4 in and 1-1/2 to 1 in provided at no additional cost
Stainless steel key-hole mounting feet for easy installation
Accommodates #8 to #4/0 AWG copper wire
Unit is equipped with defeatable door interlock which allows emergency access when switch is energized
Cover can be padlocked closed
Operating handle can be locked in the OFF position with provision to lock in the ON position
Ergonomically designed handle is made of high-impact polymer material for exceptional ruggedness, durability and corrosion resistance

Specifications

Amperage Rating:	60 A
Country of Origin:	US
Dimensions:	11.6 in W x 24.33 in H
Horsepower:	10 hp
Material:	Copper-Free Aluminum
NEMA Rating:	NEMA 3/3R/4/4X/9FG/12
Number of Poles:	3
Number of Wires:	2
Voltage Rating:	240 VAC
