MD2SR6034F APN

Name: MD2SR6034F APN
Brand: Appleton
SKU: MD2SR6034F APN
Price: 8,443.08 USD
Availability: OutOfStock

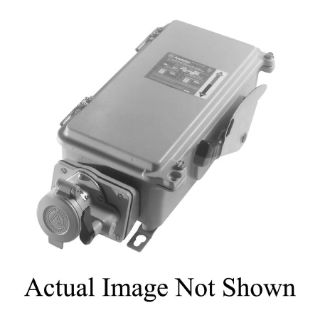

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

MD2SR6034F

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$8,443.08 / EA

Description

Brand Name

Appleton®

Type

Fused Grounding Style 2

Description

MD2SR Factory Sealed Interlocked Switched Receptacles are designed to provide short circuit protection in 30, 60 and 100 A versions. The internal, factory sealed switch provides safe and reliable power for hazardous, damp and corrosive environments. They are typically used for applications that require portable or fixed heavy duty equipment. A special polarization option prevents the insertion of a plug into a receptacle or connector that is wired for a different voltage.

Appleton® Interlocked Switched Receptacle, Fused Grounding Style 2, Series: MD2SR, 600 VAC, 60 A, 50 hp, 4 Pole, 3 Wires, NEMA 3/3R/4/4X/9FG/12 NEMA, Aluminum, 24.33 in H x 11.6 in W Dimensions

Application

Lighting Systems, Conveyors, Heaters, Motor Generator Sets, Air Conditioners, Compressors and Pumps Applications

Standards

UL File No. E10784/894/1203/1604/1682/1686 | NEC Class I, Div 2, Groups B, C, D Class II, Div 1 and 2, Groups F, G Class III Class I, Zone 2, Group IIC T3

Features

Shell and extra pole grounding style 2
Dead front interlocked, corrosion resistant
Door type removable hinged, padlockable cover
Class J fused version - short circuit withstand rated to 200000 RMS symmetrical amperes
Unfused version - short circuit withstand rated to 10000 RMS symmetrical amperes
Positive polarization, only plugs of the same style, number of poles, and amperage rating may be used with these receptacles
Plug must be inserted into the receptacle before the switch can be turned on, plug cannot be withdrawn unless the switch is in the Off position
Insulated, dual-color polymer operating handle clearly indicates the switch being energized
Unit is equipped with defeatable door interlock which allows emergency access when switch is energized
Operating handle can be locked in the Off position with provision to lock in the On position, cover can be padlocked closed
Removable hinged cover and key hole mounting feet allows for easy installation and maintenance
Conduit entry is drilled and tapped to 1-1/2 in, reducer bushings 1-1/2 in to 1-1/4 in and 1-1/2 in to 1 in provided at no additional cost
Ergonomically designed handle is made of high impact polymer material for exceptional ruggedness, durability and corrosion resistance

Specifications

Amperage Rating:	60 A
Country of Origin:	US
Dimensions:	24.33 in H x 11.6 in W
Horsepower:	50 hp
Material:	Aluminum
NEMA Rating:	NEMA 3/3R/4/4X/9FG/12
Number of Poles:	4
Number of Wires:	3
Series:	MD2SR
Voltage Rating:	600 VAC
