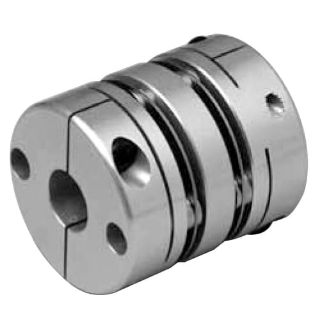

Actual Product May Vary From Image

MD32C CPLG 5/16X5/16 LOV

Name: MD32C CPLG 5/16X5/16 LOV
Brand: Lovejoy
SKU: MD32C CPLG 5/16X5/16 LOV
Availability: OutOfStock

Lovejoy® 68514477219 MD Series Mini Disc Clamp Screw Style Coupling, 0.313 in Dia Bore, 1.26 in OD, 1.575 in OAL, 22 in-lb Torque, 6000 rpm Max

Manufacturer: Lovejoy

Manufacturer part number: 68514477219

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Lovejoy®

Type

Mini Disc Clamp Screw Style

Description

The MD (mini disc) Series Coupling features a higher torque capacity over elastomeric Coupling types. The MD Series one-piece clamping design allows for easy removal and assembly. The aluminum hubs and stainless steel disc materials allow for excellent resistance to oil and other chemicals. The MD Series design offers moderate torsional stiffness for applications requiring repeatability. The MD Series also offers up to 0.02 in of axial misalignment.

Lovejoy® Coupling, Mini Disc Clamp Screw Style, Series: MD Series, 0.313 in Bore, 1.26 in OD, 1.575 in Overall Length, 0.472 in Length Through Bore, 22 in-lb Torque, 6000 rpm Maximum, 300 deg F, Stainless Steel Disc/Aluminum Hub

Application

For motion control applications

Standards

Features

Zero backlash design
Moderate torsional stiffness
Aluminum hubs with stainless steel discs
Moderate high torque capabilities
Without keyway

Specifications

Bore Diameter:	0.313 in
Country of Origin:	JP
Length Through Bore:	0.472 in
Material:	Stainless Steel Disc/Aluminum Hub
Maximum Speed:	6000 rpm
Outside Diameter:	1.26 in
Overall Length:	1.575 in
Series:	MD Series
Temperature Rating:	300 deg F
Torque Rating:	22 in-lb
