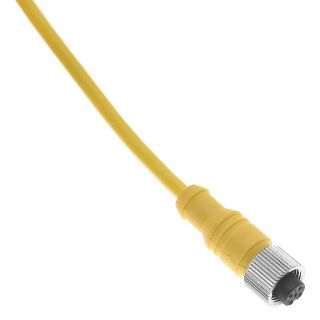

MDC-4FP-2M MEN

MDC (M12) Female Cordset
Manufacturer: Mencom Corporation
Manufacturer part number: MDC-4FP-2M
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$14.67

Product Details

Type

Cables

Description

MDC connectors, sometimes referred to as Micro-DC, use an M12 coupling nut and single keyway. These versatile connectors are easy to use and provide plug and play solutions to a wide range of applications. Mencom offers molded cable, field wired connectors, panel mount receptacles, and accessories with choices of cable jackets and connector ends to meet your specific requirements. Some options for the cordsets include, PVC jacket, PUR jacket, TPE jacket, Hi-Flex cable, and shielded cable. Receptacles come in a wide range of mounting styles and threads; including Metric, PG, and NPT.

Specifications

Amerage Rating:4
Cable Jacket Material:PVC
Cable Length (FT):6
Cable Length (M):2
Cable OD:0.2
Color Code:DC
Component Type:Cordset
Coupling Thread Gender 1:Female
Gender:Female
Gland Lower Range:0.2
Gland Upper Range:0.2
Groundwire:No
Home Run Pin Count:4
Ingress Protection:IP67
Jacket Color:Yellow
Mating Thread Type Head 1:M12
Mencom Series:MDC (A-coded)
Nut:No
Orientation Head 1:Female Straight
Pin Count:4
Rated Block:Single Ended Cordset
Shell Coupling Nut Mater:Nickel Plated Brass
Shielding:No
Voltage Rating:300
Wire Gauge:22
