MDE45-4FP-FW09-R MEN

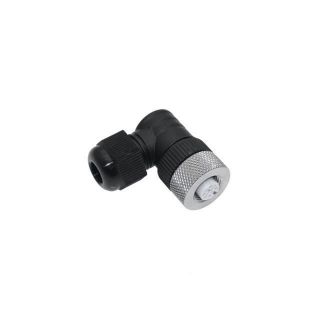

Picture of MDE45-4FP-FW09-R MEN
Actual Product May Vary From Image

Product Details

Manufacturer:
Mencom Corporation
Manufacturer part number:
MDE45-4FP-FW09-R
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$13.57 / EA

Description

Type

Network Connectors

Description

The M-12 D-Coded Ethernet connectors from Mencom are designed to provide reliable, easy to install industrial Ethernet connection in rugged and harsh environments. With PVC, PUR, and Shielded cable options, various lengths, field wireable plugs, and mating receptacles, the product offering covers most industrial applications.

Specifications

Amerage Rating:4
Cable OD Range:PG09 4-8mm
Color Code:Ethernet
Component Type:Field Wireable
Coupling Thread Gender 1:Female
Gender:Female
Gland Lower Range:4
Gland Upper Range:8
Groundwire:No
Ingress Protection:IP67
Lower AWG:24
Mating Thread Type Head 1:M12 D-Code
Mencom Series:Ethernet
Nut:No
Orientation Head 1:Female Right Angle
Pin Count:4
Rated Block:Field Wireable
Shell Coupling Nut Mater:Nickel Plated Brass
Shielding:No
Upper AWG:18
Voltage Rating:250
