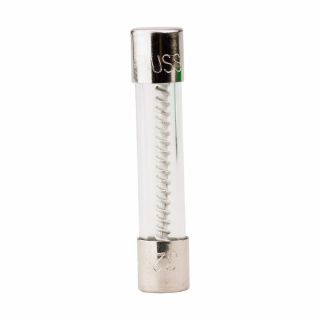

Actual Product May Vary From Image

MDL-10-R BSF

Name: MDL-10-R BSF
Brand: Bussmann
SKU: MDL-10-R BSF
Price: 5.09 USD
Availability: InStock

Bussmann MDL-10-R Electronic Small Dimension Time Delay Fuse, 10 A, 32 VAC/VDC, 1 kA Interrupt, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: MDL-10-R

Availability: Expected Leadtime 21 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	8
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$5.09

Qty:

Product Details

Brand Name

Bussmann

Type

Electronic Small Dimension

Description

Bussmann Time Delay Fuse, Electronic Small Dimension, Series: MDL, Non-Indicating, Non-Rejection, 10 A, 32 VAC/VDC, 1 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Clip/Holder Mount, Cylindrical Body Type, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body Size

Application

Electronic Circuit Applications

Standards

RoHS 2011/65/EU | UL 248-14, Guide JDYX2, File No. E19180 Recognized | CSA Class No. 1422-30 | CE Certified

Features

Time delay allows close sizing on inductive circuits
1000 A at 32 VAC interrupt rating
60 min maximum at 135%, 120 sec maximum at 200% response time

Specifications

Amperage Rating:	10 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cylindrical
Country of Origin:	TW
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	1 kA
Material:	Glass
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Non-Rejection
Response Time:	60 min, 120 s
Series:	MDL
Terminal Type:	Ferrule
Voltage Rating:	32 VAC
