MDS40C CPLG 3/8X3/8 LOV

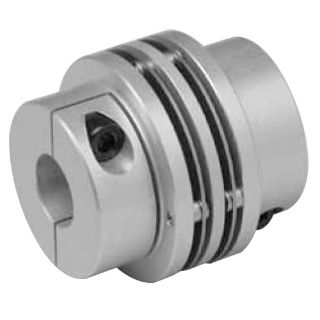

Picture of MDS40C CPLG 3/8X3/8 LOV
Actual Product May Vary From Image

Product Details

Manufacturer:
Lovejoy
Manufacturer part number:
68514477167
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$253.57 / EA

Description

Brand Name

Lovejoy®

Type

Mini Disc Spacer Clamp Screw Style

Description

The MDS (mini disc spacer) Series Coupling features a higher parallel misalignment capacity over standard MD Series at 0.006 in. The MDS Series also has the highest parallel misalignment at 0.012 in and angular misalignment at 2 deg of any of the mini disc Couplings.
Lovejoy® Coupling, Mini Disc Spacer Clamp Screw Style, Series: MDS Series, 3/8 in Bore, 1.575 in OD, 1.811 in Overall Length, 1.102 in Dia Hub, 0.65 in Length Through Bore, 35 in-lb Torque, 3800 rpm Maximum, 300 deg F, Stainless Steel Disc/Aluminum Hub

Application

For motion control applications

Standards

ACMA Certified | ECCN EAR99 | EPTDA Approved | FPDA Motion and Control Network Member | Member of Hydraulic Institute | MPTA Standard | NFPA Member | PTDA Approved

Features

  • Zero backlash design
  • High torsional stiffness
  • Aluminum hubs with stainless steel discs
  • Moderate high torque capabilities
  • Low moment of inertia
  • Without keyway

Specifications

Bore Diameter:3/8 in
Country of Origin:JP
Hub Size:1.102 in Dia
Length Through Bore:0.65 in
Material:Stainless Steel Disc/Aluminum Hub
Maximum Speed:3800 rpm
Outside Diameter:1.575 in
Overall Length:1.811 in
Series:MDS Series
Temperature Rating:300 deg F
Torque Rating:35 in-lb
