MDSD50C CPLG 3/4X3/4 LOV

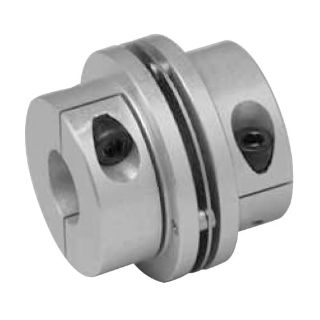

Picture of MDSD50C CPLG 3/4X3/4 LOV
Actual Product May Vary From Image

Product Details

Manufacturer:
Lovejoy
Manufacturer part number:
68514477202
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Lovejoy®

Type

Mini Disc Single Disc Clamp Screw Style

Description

The compact design of the MDSD (mini disc single disc) Series accommodates applications that allow for a minimum amount of space for the Coupling. The MDSD Series Coupling also features a high torsional stiffness over the MD and MDS Series. The MDSD Series also has the lowest inertia of the mini disc designs.
Lovejoy® Coupling, Mini Disc Single Disc Clamp Screw Style, Series: MDSD Series, 3/4 in Bore, 1.969 in OD, 1.732 in Overall Length, 1.535 in Dia Hub, 0.764 in Length Through Bore, 66 in-lb Torque, 3100 rpm Maximum, 300 deg F, Stainless Steel Disc/Aluminum Hub

Application

For motion control applications

Standards

ACMA Certified | ECCN EAR99 | EPTDA Approved | FPDA Motion and Control Network Member | Member of Hydraulic Institute | MPTA Standard | NFPA Member | PTDA Approved

Features

  • Zero backlash design
  • Highest torsional stiffness
  • Aluminum hubs with stainless steel discs
  • Moderate high torque capabilities
  • Low moment of inertia
  • Without keyway

Specifications

Bore Diameter:3/4 in
Country of Origin:JP
Hub Size:1.535 in Dia
Length Through Bore:0.764 in
Material:Stainless Steel Disc/Aluminum Hub
Maximum Speed:3100 rpm
Outside Diameter:1.969 in
Overall Length:1.732 in
Series:MDSD Series
Temperature Rating:300 deg F
Torque Rating:66 in-lb
