MEC-5FP-FW07 MEN

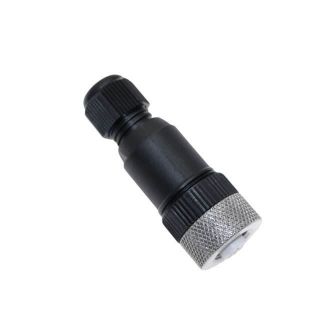

Picture of MEC-5FP-FW07 MEN
Actual Product May Vary From Image

Product Details

Manufacturer:
Mencom Corporation
Manufacturer part number:
MEC-5FP-FW07
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$17.25 / EA

Description

Type

Cables

Description

MEC connectors, sometimes referred to as Euro-AC, are a unique member of the Micro series of connectors, (MDC and MAC.) The MEC connectors use a single reverse keyway and an M12 coupling nut. These easy to use plug and play connectors are offered with molded cable, field wired connectors, panel mount receptacles, and accessories with choices of cable jackets and connector ends to meet your specific requirements.

Specifications

Amerage Rating:4
Cable OD Range:PG07 3-6.5mm
Color Code:EU-AC
Component Type:Field Wireable
Coupling Thread Gender 1:Female
Gender:Female
Gland Lower Range:3
Gland Upper Range:6
Groundwire:No
Ingress Protection:IP67
Lower AWG:24
Mating Thread Type Head 1:M12
Mencom Series:MEC (B-coded)
Nut:No
Orientation Head 1:Female Straight
Pin Count:5
Rated Block:Field Wireable
Shell Coupling Nut Mater:Nickel Plated Brass
Upper AWG:18
Voltage Rating:300
