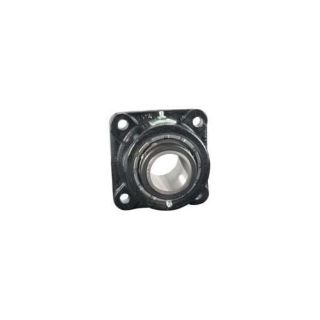

MF5307 RND

Name: MF5307 RND
Brand: Rexnord
SKU: MF5307 RND
Price: 2,348.91 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

MF5307

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$2,348.91 / EA

Description

Brand Name

Rex®

Type

Fixed Heavy Duty

Description

Rex® Flanged Block Spherical Roller Bearing, Fixed Heavy Duty, Series: 5000, 3-7/16 in Bore, 6-23/32 in Bolt Center-to-Center Length, 4-3/4 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 8-7/16 in Overall Length/Diameter, 5-5/16 in Overall Depth, 8-7/16 in Overall Height, Double Set Screw Collar Locking Device, Elastomer Seal, 84330 lb Dynamic/90700 lb Static Load, 1400 rpm Maximum, 225 deg F, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

Easy bearing clearance adjustment
Replaceable bearing
Pre-lubricated with standard grease for normal operation
Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
Increased shaft holding power and stability
Type M spring loaded heavy contact seal
Cast iron housing
Misalignment capabilities total of 4 deg
Factory set clearance and lubrication

Specifications

Bolt Center-to-Center Length:	6-23/32 in
Bolt Circle Diameter:	4-3/4 in
Bore Diameter:	3-7/16 in
Finish:	Powder Coated
Flange Mounting Type:	4-Bolt Square
Load Capacity:	84330 lb Dynamic/90700 lb Static
Locking Device:	Double Set Screw Collar
Maximum Speed:	1400 rpm
Overall Depth:	5-5/16 in
Overall Height:	8-7/16 in
Overall Length/Diameter:	8-7/16 in
Seal Material:	Elastomer
Series:	5000
Temperature Rating:	225 deg F

Resources

Video
