MHZ2-10DN SMC

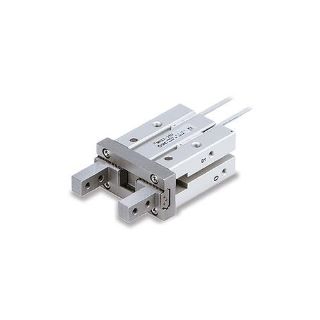

Picture of MHZ2-10DN SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
MHZ2-10DN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$210.45 / EA

Description

Brand Name

SMC®

Type

2-Finger Standard

Description

SMC®, MHZ2-10DN, Air Gripper, 2-Finger Standard, Series: MHZ2, 15.2 mm Open Width, 11.2 mm Closed Width, 17 N Internal Holding Force, 11 N External Holding Force, 29 to 102 psi Pressure, 14 to 140 deg F, M3x0.5 Port, 57 mm Overall Length

Standards

RoHS Compliant | NSF-H1 Certified

Features

  • High repeatability ±0.01 mm
  • Standard, narrow and flat finger options
  • Auto switch capable
  • Option for NSF-H1, food grade lubricant

Specifications

Closed Width:11.2 mm
Country of Origin:US
External Holding Force:11 N
Internal Holding Force:17 N
Open Width:15.2 mm
Overall Length:57 mm
Port Size:M3x0.5
Pressure Rating:29 to 102 psi
Series:MHZ2
Temperature Rating:14 to 140 deg F

Products Specifications

Bore Size
10 mm
Brand Name
SMC
