MHZ2-20SN SMC

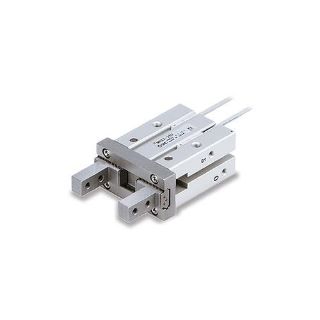

Picture of MHZ2-20SN SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
MHZ2-20SN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$307.80 / EA

Description

Brand Name

SMC®

Type

2-Finger Standard

Description

SMC®, MHZ2-20SN, Air Gripper, 2-Finger Standard, Series: MHZ2, 26.3 mm Open Width, 16.3 mm Closed Width, 33 N External Holding Force, 36 to 102 psi Pressure, 14 to 140 deg F, M5x0.8 Port, 84.8 mm Overall Length

Standards

RoHS Compliant | NSF-H1 Certified

Features

  • High repeatability ±0.01 mm
  • Standard, narrow and flat finger options
  • Auto switch capable
  • Option for NSF-H1, food grade lubricant

Specifications

Closed Width:16.3 mm
Country of Origin:US
External Holding Force:33 N
Open Width:26.3 mm
Overall Length:84.8 mm
Port Size:M5x0.8
Pressure Rating:36 to 102 psi
Series:MHZ2
Temperature Rating:14 to 140 deg F

Products Specifications

Bore Size
20 mm
Brand Name
SMC
