MHZL2-25D SMC

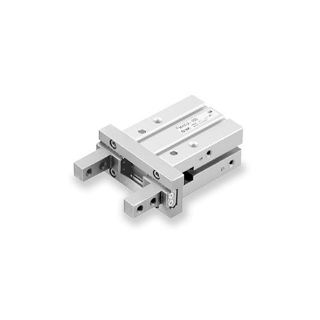

Picture of MHZL2-25D SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
MHZL2-25D
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$400.40 / EA

Description

Brand Name

SMC®

Type

2-Finger Standard

Description

SMC®, MHZL2-25D, Air Gripper, 2-Finger Standard, Series: MHZL2, 41.3 mm Open Width, 19.3 mm Closed Width, 104 N Internal Holding Force, 65 N External Holding Force, 15 to 102 psi Pressure, 14 to 140 deg F, M5x0.8 Port, 106 mm Overall Length

Standards

RoHS Compliant | NSF-H1 Certified

Features

  • High repeatability ±0.01 mm
  • Standard and flat finger option
  • Option for NSF-H1, food grade lubricant
  • Auto switch capable

Specifications

Closed Width:19.3 mm
Country of Origin:US
External Holding Force:65 N
Internal Holding Force:104 N
Open Width:41.3 mm
Overall Length:106 mm
Port Size:M5x0.8
Pressure Rating:15 to 102 psi
Series:MHZL2
Temperature Rating:14 to 140 deg F

Products Specifications

Bore Size
25 mm
Brand Name
SMC
