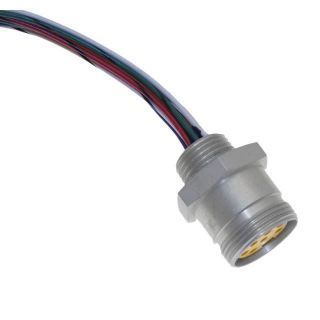

MIN-10FR-1-22-SS MEN

MIN Size III (1-1/8") Female Receptacle
Manufacturer: Mencom Corporation
Manufacturer part number: MIN-10FR-1-22-SS
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$58.12

Product Details

Type

Cables

Description

MIN size III (1-1/8") connectors provide easy plug and play connectivity for a wide range of applications that require 9, 10, 12, or 19 contacts. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles with choices of cable jackets and connector ends to meet your specific requirements.

Specifications

Amerage Rating:3
Cable Jacket Material:PVC
Cable Length (FT):1
Cable Length (M):0.3
Color Code:North American
Component Type:Receptacle
Coupling Thread Gender 1:Male
Gender:Female
Groundwire:Yes
Ingress Protection:IP67
Mating Thread Type Head 1:1.125-16UN2
Mencom Series:MIN Size III
Mounting Style:Front Mount
Mounting Thread:.5-NPT
Nut:No
Orientation Head 1:Female Straight
Pin Count:10
Rated Block:Receptacle
Shell Coupling Nut Mater:Stainless Steel
Termination:Discrete
Voltage Rating:300
Wire Gauge:22
