MIN-3MPM-FW MEN

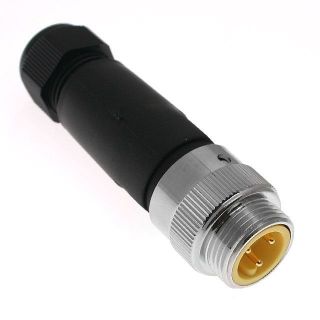

Picture of MIN-3MPM-FW MEN
Actual Product May Vary From Image

Product Details

Manufacturer:
Mencom Corporation
Manufacturer part number:
MIN-3MPM-FW
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$22.52 / EA

Description

Type

Cables

Description

MIN size I (7/8") connectors provide easy plug and play connectivity for a wide range of applications that require 2-6 contacts. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles with choices of cable jackets and connector ends to meet your specific requirements.

Specifications

Amerage Rating:18
Cable OD Range:5-13mm
Color Code:North American
Component Type:Field Wireable
Coupling Thread Gender 1:Male
Gender:Male
Gland Lower Range:5
Gland Upper Range:13
Groundwire:No
Ingress Protection:IP67
Lower AWG:22
Mating Thread Type Head 1:7/8-16UN2
Mencom Series:MIN Size I
Nut:No
Orientation Head 1:Male Straight
Pin Count:3
Rated Block:Field Wireable
Shell Coupling Nut Mater:Nickel Plated Brass
Upper AWG:14
Voltage Rating:600
