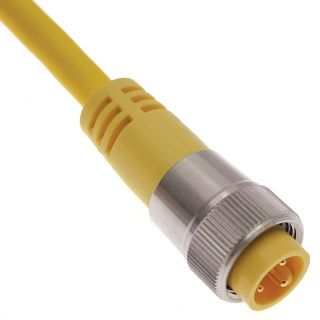

Name: MIN-6MPX-6-SS MEN
Brand: Mencom Corporation
SKU: MIN-6MPX-6-SS MEN
Availability: OutOfStock

MIN-6MPX-6-SS MEN

Actual Product May Vary From Image

Product Details

Manufacturer:

Mencom Corporation

Manufacturer part number:

MIN-6MPX-6-SS

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Type

Cables

Description

MIN size I (7/8") connectors provide easy plug and play connectivity for a wide range of applications that require 2-6 contacts. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles with choices of cable jackets and connector ends to meet your specific requirements.

Specifications

Amerage Rating:	5.5
Cable Jacket Material:	PVC
Cable Length (FT):	6
Cable Length (M):	2
Cable OD:	0.38
Color Code:	North American
Component Type:	Cordset
Coupling Thread Gender 1:	Female
Gender:	Male
Gland Lower Range:	0.38
Gland Upper Range:	0.38
Groundwire:	Yes
Home Run Pin Count:	6
Ingress Protection:	IP67
Jacket Color:	Yellow
Mating Thread Type Head 1:	7/8-16UN2
Mencom Series:	MIN Size I
Nut:	No
Orientation Head 1:	Male Straight
Pin Count:	6
Rated Block:	Single Ended Cordset
Shell Coupling Nut Mater:	Stainless Steel
Voltage Rating:	300
Wire Gauge:	18
