Actual Product May Vary From Image

MINC-3FPX-5M MEN

Name: MINC-3FPX-5M MEN
Brand: Mencom Corporation
SKU: MINC-3FPX-5M MEN
Price: 42.27 USD
Availability: OutOfStock

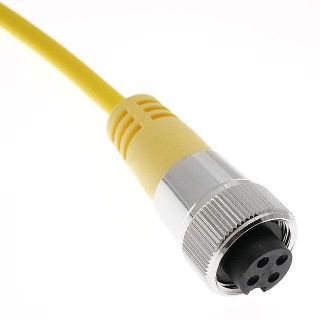

MIN Size I (7/8") Female Cordset

Manufacturer: Mencom Corporation

Manufacturer part number: MINC-3FPX-5M

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$42.27

Qty:

Product Details

Type

Cables

Description

MIN size I (7/8") connectors provide easy plug and play connectivity for a wide range of applications that require 2-6 contacts. Mencom offers many combinations of molded cables, field wired connectors, and panel mount receptacles with choices of cable jackets and connector ends to meet your specific requirements.

Specifications

Amerage Rating:	8
Cable Jacket Material:	PVC
Cable Length (FT):	15
Cable Length (M):	5
Cable OD:	0.29
Color Code:	Cenelec
Component Type:	Cordset
Coupling Thread Gender 1:	Female
Gender:	Female
Gland Lower Range:	0.29
Gland Upper Range:	0.29
Groundwire:	No
Home Run Pin Count:	3
Ingress Protection:	IP67
Jacket Color:	Yellow
Mating Thread Type Head 1:	7/8-16UN2
Mencom Series:	MIN Size I
Nut:	No
Orientation Head 1:	Female Straight
Pin Count:	3
Rated Block:	Single Ended Cordset
Shell Coupling Nut Mater:	Nickel Plated Brass
Voltage Rating:	300
Wire Gauge:	18
