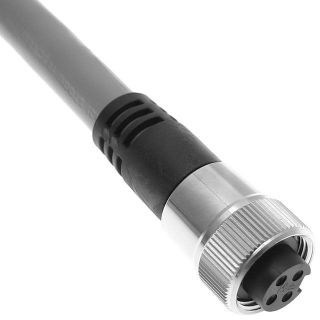

MINH-4FP-6M MEN

MIN Power (7/8") Female Cordset
Manufacturer: Mencom Corporation
Manufacturer part number: MINH-4FP-6M
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
5 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$108.92

Product Details

Type

Cables

Description

MIN Power connectors provide easy plug and play connectivity for applications up to 18 amps. Mencom offers molded cables and panel mount receptacles with 3, 4, or 7 contacts.

Specifications

Amerage Rating:15
Cable Jacket Material:PVC
Cable Length (FT):18
Cable Length (M):6
Cable OD:0.58
Color Code:North American
Component Type:Cordset
Coupling Thread Gender 1:Female
Gender:Female
Gland Lower Range:0.58
Gland Upper Range:0.58
Groundwire:Yes
Ingress Protection:IP67
Jacket Color:Gray
Mating Thread Type Head 1:7/8-16UN2
Mencom Series:MIN Power
Nut:No
Orientation Head 1:Female Straight
Pin Count:4
Rated Block:Single Ended Cordset
Shell Coupling Nut Mater:Nickel Plated Brass
Voltage Rating:600
Wire Gauge:14
