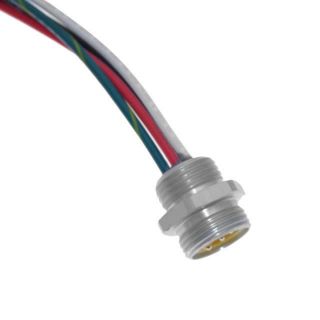

Actual Product May Vary From Image

MINH-4MR-1 MEN

Name: MINH-4MR-1 MEN
Brand: Mencom Corporation
SKU: MINH-4MR-1 MEN
Price: 16.15 USD
Availability: InStock

MIN Power (7/8") Male Receptacle

Manufacturer: Mencom Corporation

Manufacturer part number: MINH-4MR-1

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
6	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$16.15

Qty:

Product Details

Type

Cables

Description

MIN Power connectors provide easy plug and play connectivity for applications up to 18 amps. Mencom offers molded cables and panel mount receptacles with 3, 4, or 7 contacts.

Specifications

Amerage Rating:	15
Cable Jacket Material:	PVC
Cable Length (FT):	1
Cable Length (M):	0.3
Color Code:	North American
Component Type:	Receptacle
Coupling Thread Gender 1:	Male
Gender:	Male
Groundwire:	Yes
Ingress Protection:	IP67
Mating Thread Type Head 1:	7/8-16UN2
Mencom Series:	MIN Power
Mounting Style:	Front Mount
Mounting Thread:	.5-NPT
Nut:	No
Orientation Head 1:	Male Straight
Pin Count:	4
Rated Block:	Receptacle
Shell Coupling Nut Mater:	Clear Anodized Aluminum
Termination:	Discrete
Voltage Rating:	600
Wire Gauge:	14
