ML1/0-LY PAN

Name: ML1/0-LY PAN
Brand: Panduit
SKU: ML1/0-LY PAN
Price: 7.45 USD
Availability: OutOfStock

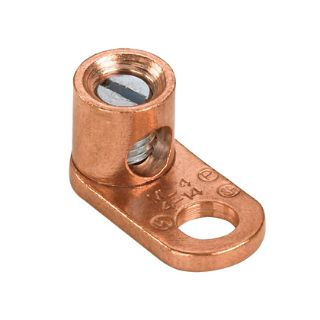

Panduit® ML1/0-LY ML Series 1- Barrel Mechanical Lug, 14 to 1/0 AWG Solid/Stranded Copper Conductor, 5/16 in Stud, 1 Bolt Hole, Cast Copper

Manufacturer: Panduit

Manufacturer part number: ML1/0-LY

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$7.45

Qty:

Product Details

Brand Name

Panduit®

Type

1- Barrel

Alternate Supplier #

Grainger - 62PD20

Description

Panduit® Mechanical Lug, 1- Barrel, Series: ML Series, Solid/Stranded Copper Conductor, 14 to 1/0 AWG Conductor, 5/16 in Stud, 1 Bolt Hole, 0.8 in L x 0.73 in W x 0.09 in THK Tongue, Straight Tongue, 600 VAC, Specifications: 1/4 in Hex, 90 deg C, Cast Copper, 1.57 in L x 0.73 in W x 0.79 in H Dimensions

Application

For copper code conductors applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | cULus Listed | UL Listed

Features

Made from high strength electrolytic copper to provide premium electrical and mechanical performance
Wire range taking, inspection window, high strength copper, compact design, flat for complete surface contact
Compact design saves space
Wide wire range taking capability minimizes inventory requirements
Inspection window to visually assure full conductor insertion
Plated steel set screw provides high strength, durable electrical contact between conductor and connector
Flat bottom allows for complete contact with mounting surface

Specifications

Conductor Size:	14 to 1/0 AWG
Conductor Type:	Solid/Stranded Copper
Country of Origin:	IN
Dimensions:	1.54 in L x 0.79 in H
Material:	Cast Copper
Number of Bolt Holes:	1
Series:	ML Series
Specifications:	1-Barrel, 1/4 in Hex Key
Stud Size:	5/16 in
Temperature Rating:	90 deg C
Tongue Size:	0.8 in L x 0.73 in W x 0.09 in THK
Tongue Type:	Straight
Voltage Rating:	600 VAC
