MLCQ852G4GA6 APN

Name: MLCQ852G4GA6 APN
Brand: Appleton
SKU: MLCQ852G4GA6 APN
Availability: OutOfStock

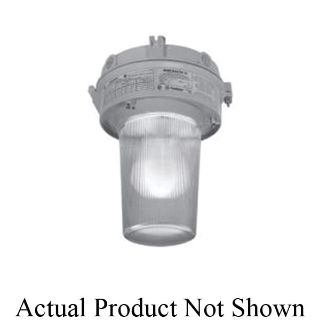

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

MLCQ852G4GA6

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Enclosed and Gasketed

Description

The Mercmaster™ III induction luminaire meets the NEC and CEC requirements for use indoors or out. They are suitable for hazardous and adverse locations, including areas exposed to moisture, dust and dirt, corrosive chemicals, harsh weather and extreme temperatures. Because they are enclosed and gasketed, you will never have to worry about corrosion from chemicals or vapors. They virtually maintenance free and provide up to 100000 hr lamp life, making them ideal for areas where access for relamping and maintenance is difficult. They have minimal lumen depreciation with no cycling at end of life.

Appleton® Induction Light Fixture, Enclosed and Gasketed, Series: ML Series, 277 VAC, HID Lamp, 85 W Lamp, 10000 hr Average Life, Prismatic Glass Lens, NEMA 4X Enclosure, Ceiling Mount, Die-Cast Copper-Free Aluminum Housing, Epoxy Powder Coated Housing, 13.62 in W x 1.75 in H

Application

For use in areas where access for relamping is difficult, reliability is essential and the environment is costly to maintain, cold environment applications, marine and wet locations, and in a wide range of industrial, chemical processing and other areas where flammable gases and vapors or combustible dusts are present, in non-hazardous areas where severe weather conditions, excessive moisture, dirt, dust and corrosive atmospheres are a problem, pulp and paper mills, processing plants, chemical plants, oil refineries, foundries, manufacturing plants and storage areas

Standards

cCSAus Certified | C22.2 #250/137 | NEC/CEC Class I Division 2 Group A B C D/Class II Division 1 and 2 Group E F G | UL 1598/844/1598A

Features

Instant start and restrike
High lumen output and efficacy (up to 73 lumens/W)
Fixtures operate safely in a 104 deg F ambient
Good lumen maintenance provides less than 30% depreciation after 60 K hr of operation
Virtually maintenance free
Ultra long 100000 hr of life keeps maintenance costs to a minimum
Starts in temperatures as low as -40 deg F/-40 deg C
Low total harmonic distortion (less than 10%)
No cycling at end of life
Modular design allows scores of fixture component combinations to meet installation and lighting needs
Reflector choice includes standard dome and 30 deg angle types, both made of fiberglass reinforced white polyester, highly resistant to unusually corrosive applications
Reflectors are vented for cooler, dirt-free operation and maintained lumen output, they secure to ballast housing with stainless steel screws threading into stainless steel inserts
For high corrosion resistance, fixture housing, mounting hoods and guards are copper-free cast aluminum with baked epoxy finish, electrostatically applied for uniformity, all exposed hardware is stainless steel
Hinge has high lip for added safety during installation and servicing
Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing, swing-away design of captive bolt and nut simplifies servicing
Body gaskets and globe gaskets are high-temperature silicone rubber
All Mercmaster™ III mounting hoods have provision for easy field installation of fuses in fixtures
For electrical protection, a ground wire is provided on each Mercmaster™ to bond hood and ballast housing
Fixture bodies have stainless steel threaded inserts to receive stainless steel screws for reflector and guard
Prevents "freezing", allowing guards and reflectors to be easily removed and replaced at any time, without damage to the housing

Includes

(5) 3/4 in Hub and (4) Close-Up Plugs

Specifications

Average Life:	10000 hr
Country of Origin:	MX
Dimensions:	13.62 in W x 1.75 in H
Enclosure Type:	NEMA 4X
Housing Finish:	Epoxy Powder Coated
Housing Material:	Die-Cast Copper-Free Aluminum
Lamp Type:	HID
Lamp Wattage:	85 W
Lens Type:	Prismatic Glass
Mounting Type:	Ceiling
Series:	ML Series
Voltage Rating:	277 VAC
