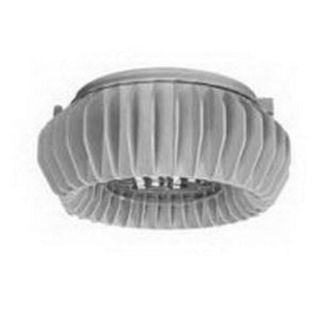

MLEDNA702P5BU APN

Name: MLEDNA702P5BU APN
Brand: Appleton
SKU: MLEDNA702P5BU APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

MLEDNA702P5BU

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Description

Mercmaster™ LED luminaires deliver exceptional efficiency, performance and advanced engineering. Designed to utilize as little as 32 W of power, it lowers energy consumption while providing 60000+ hr of running lamp life. It sets the bar even higher for the lighting industry in terms of shock resistance, cold start capabilities, minimal heat production which improves service life, and overall safety. This fixture offers a flexible, modular design that allows for retrofits and plant expansions to meet unique installation requirements. Certified for class I, Division 2 and Zone 2 locations, it provides global lighting solutions for a wide range of industrial and hazardous applications.

Appleton® Mercmaster™ Enclosed and Gasketed Luminaire, Series: MLEDN, 120 to 277 VAC, 0.31 to 0.17 A, LED Lamp, 35 W Lamp, 60000 hr Average Life, 5650 K Color Temperature, 70 CRI, Polycarbonate Lens, 2300 Lumens, NEMA 3R/4/4X/IP66/IP67 Enclosure, Rigid Pendant Mounting, Cast Copper Free Aluminum Housing Material, Baked Gray Epoxy-Clad Housing Finish, 15.4 in Dia x 6.66 in H Dimensions

Application

For marine and wet locations, wide range of industrial, chemical processing and other areas where flammable gases and vapors are present, areas of low clearance, low ceiling heights or where fixture weights must be minimized, non-hazardous locations where severe weather conditions, excessive moisture, dirt, dust, corrosive atmosphere or high ambient temperatures are encountered, pulp and paper mills, processing plants, chemical plants, oil refineries, foundries, manufacturing plants, storage areas, waste and sewage treatment, parking garages, other areas where dust, water, dirt and rough usage are a problem

Standards

ATEX | IECEx Zone 2 and 22, Ex II 2 GD

Features

Compact lightweight low profile design is suited for low mounting heights
Modular design allows scores of fixture component combinations to meet installation needs
Hinge has high lip for added safety during installation and servicing
Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing
Swing away design of captive bolt and nut simplifies servicing
NPT and metric threads standard
NEMA type V symmetrical light distribution
Lamp wattage equivalent to 70 W HPS/PSMH
3/4 in NPT hub
Polycarbonate globe optical assembly

Specifications

Amperage Rating:	0.31 to 0.17 A
Average Life:	60000 hr
Color Rendering Index (CRI):	70
Color Temperature:	5650 K
Country of Origin:	MX
Dimensions:	15.4 in Dia x 6.66 in H
Enclosure Type:	NEMA 3R/4/4X/IP66/IP67
Housing Finish:	Baked Gray Epoxy-Clad
Housing Material:	Cast Copper Free Aluminum
Lamp Type:	LED
Lamp Wattage:	35 W
Lens Type:	Polycarbonate
Lumens:	2300 Lumens
Mounting Type:	Rigid Pendant
Series:	MLEDN
Voltage Rating:	120 to 277 VAC
