MLEDNW703P5BH APN

Name: MLEDNW703P5BH APN
Brand: Appleton
SKU: MLEDNW703P5BH APN
Availability: OutOfStock

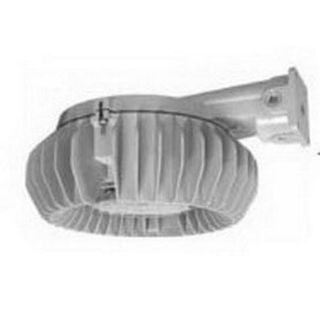

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

MLEDNW703P5BH

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Type V Symmetrical Enclosed Gasketed

Description

Mercmaster™ LED luminaires deliver exceptional efficiency, performance and advanced engineering. Designed to utilize as little as 32 W of power, it lowers energy consumption while providing 60000+ hr of running lamp life. It sets the bar even higher for the lighting industry in terms of shock resistance, cold start capabilities, minimal heat production which improves service life and overall safety. This fixture offers a flexible, modular design that allows for retrofits and plant expansions to meet unique installation requirements. Certified for Class I, Division 2 and Zone 2 locations, it provides global lighting solutions for a wide range of industrial and hazardous applications.

Appleton® Mercmaster™ LED Luminaire, Type V Symmetrical Enclosed Gasketed, Series: MLEDN, 347 to 480 VAC, 33/35 W Fixture, 0.17/0.31 A, LED Lamp, 33 W Lamp, 66 Lumens/W Light Output, 60000 hr Average Life, 5650 K Color Temperature, 70 CRI, Polycarbonate Globe Lens, 2300 Lumens, NEMA 3R/4X/IP66/IP67 Enclosure, Wall Mounting, Cast Copper-Free Aluminum Housing Material, Baked Gray Epoxy Clad Housing Finish, 8.54 in H x 18.63 in W Dimensions

Application

For marine and wet locations, pulp and paper mills, processing plants, chemical plants, oil refineries, foundries, manufacturing plants, storage areas, waste and sewage treatment, parking garages and other areas where dust, water, dirt and rough usage are a problem

Standards

UL 1598/1598A/8750/844 | CSA C22.2 No. 250.0/C22.2 No. 137 | cCSAus 065182 | NEC/CEC: Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Group IIC, Class II, Division 1, Group E, F, G, Class II, Division 2, Group F, G, Class III | ATEX/IECEx: Zone 2 and 22 II 2 GD

Features

Compact light weight low profile design is suited for low mounting heights
Modular design allows scores of fixture component combinations to meet installation needs, uses the same mounting hoods as the Mercmaster™ III HIDs
Accommodates a wide range of voltages
Hinge has high lip for added safety during installation and servicing
Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing
Swing away design of captive bolt and nut simplifies servicing
All Mercmaster™ mounting hoods have provision for easy field installation of fuses in fixtures
NPT and metric threads standard
0.31 A at 120 VAC, 0.17 A at 277 VAC

Specifications

Amperage Rating:	0.17/0.31 A
Average Life:	60000 hr
Color Rendering Index (CRI):	70
Color Temperature:	5650 K
Country of Origin:	MX
Dimensions:	8.54 in H x 18.63 in W
Enclosure Type:	NEMA 3R/4X/IP66/IP67
Fixture Wattage:	33/35 W
Housing Finish:	Baked Gray Epoxy Clad
Housing Material:	Cast Copper-Free Aluminum
Lamp Type:	LED
Lamp Wattage:	33 W
Lens Type:	Polycarbonate Globe
Light Output:	66 Lumens/W
Lumens:	2300 Lumens
Mounting Type:	Wall
Series:	MLEDN
Voltage Rating:	347 to 480 VAC
