MLLEDA42D5BUF APN

Name: MLLEDA42D5BUF APN
Brand: Appleton
SKU: MLLEDA42D5BUF APN
Availability: OutOfStock

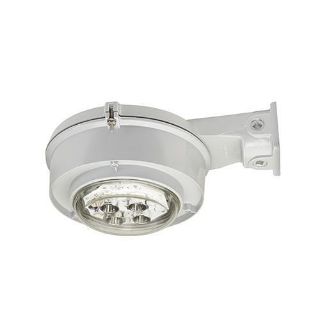

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

MLLEDA42D5BUF

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Cylindrical Enclosed Gasketed Low Profile

Description

Mercmaster™ LED low profile Luminaires provide the reliability and performance of our original Mercmaster™ LED Luminaires in a compact, light weight housing, designed at lower wattages for low mounting heights. Four globe styles are offered along with an optional 30 deg reflector to easily change the direction and distribution of light, as desired for the application.

Appleton® Mercmaster™ General Purpose Luminaire, Cylindrical Enclosed Gasketed Low Profile, Series: MLLED, 120 to 277 VAC, 48 W Fixture, 0.41/0.2 A, LED Lamp, 70 Lamps, 60000 hr Average Life, 5700 K Color Temperature, >70 CRI, Diffused Polycarbonate Lens, 4600 Lumens, NEMA 3R/4/4X/IP66 Enclosure, Pendant Mounting, Cast Copper Free Aluminum Housing Material, Painted Gray Epoxy Powder Coated Housing Finish, 13.43 in OD x 6.08 in L Dimensions

Application

For a wide range of industrial, chemical processing and other areas where flammable gases and vapors are present, marine and wet locations, areas of low clearance, low ceiling heights or where fixture weights must be minimized, pulp and paper mills, processing plants, chemical plants, petrochemical facilities, oil refineries, drilling rigs, foundries, waste and sewage treatment, mining and steel mills

Standards

UL 50/844/1598/1598A/8750 | cULus Listed | CSA C22.2 File No. 94/60529/137/250 | ANSI/IEC 60529 | cCSAus 164460 | DLC Qualified Products Listed | NEC/CEC Class I, Div 2, Groups A, B, C, D, Class I, Zone 2, Group IIC, Class II, Div 1, Groups E, F, G, Class II, Div 2, Groups F, G Class III, Zone 20, Group IIIC and Zone 21, Group IIIB

Features

Compact lightweight low profile design is suited for low mounting heights
Six standard mounting hood designs allow for mounting in any location
Uses same mounting hoods as Mercmaster™ III
Customize to the application requirements with four different globe options
Three light output levels for retrofit of HID fixtures up to 150 W
Hinge has high lip for added safety during installation and servicing
Hinge and bolt construction assures 360 deg compression at all points on fixture housing gasket for positive sealing
Swing away design of captive bolt and nut simplifies servicing
Standard NPT threads

Specifications

Amperage Rating:	0.41/0.2 A
Average Life:	60000 hr
Color Rendering Index (CRI):	>70
Color Temperature:	5700 K
Country of Origin:	MX
Dimensions:	13.43 in OD x 6.08 in L
Enclosure Type:	NEMA 3R/4/4X/IP66
Fixture Wattage:	48 W
Housing Finish:	Painted Gray Epoxy Powder Coated
Housing Material:	Cast Copper Free Aluminum
Lamp Type:	LED
Lens Type:	Diffused Polycarbonate
Lumens:	4600 Lumens
Mounting Type:	Pendant
Number of Lamps:	70
Series:	MLLED
Voltage Rating:	120 to 277 VAC
