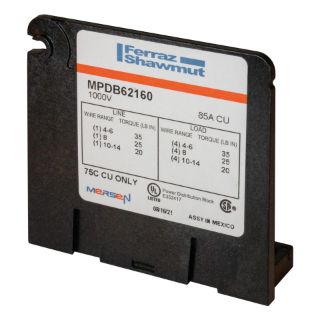

MPDB62160 FER

Name: MPDB62160 FER
Brand: Mersen
SKU: MPDB62160 FER
Price: 66.72 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Mersen

Manufacturer part number:

MPDB62160

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

$66.72 / EA

Description

Brand Name

Mersen

Type

Adder Miniature Open Style

Description

The next generation power distribution block (PDB). Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points. Unless noted otherwise, all blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL 508 A and the national electric code. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs.

Mersen Power Distribution Block, Adder Miniature Open Style, Series: MPDB, 600 VAC, 85 A, 1 Primary Connections/Pole, 4 Secondary Connection/Pole, 14 to 4 AWG Wire, 100 kA Short Circuit, Polycarbonate, Black, 0.93 in W x 3.08 in D x 2.81 in H Dimensions

Application

Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point Applications

Standards

RoHS Compliant | UL File No. E352417 | CSA Class 6228-01, File No. 069363_0_000 | CE Marked | UL94-V0 Flammability

Features

Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
Connectors are all 1-piece tin-plated
Insulators are virtually unbreakable, made of glass-filled polycarbonate
See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
Hinged covers can be installed without tools
1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
Polycarbonate safety covers provide dead-front protection
One cover is needed for each pole
Each cover has a test probe hole in the center for circuit checking
Adder poles for increased flexibility and ease-of-use
Adder poles can be stacked to form multi-pole units in the field without the use of tools
Adder poles allow for customization of primary and secondary wire combinations
14 to 4 AWG Cu line/load

Specifications

Amperage Rating:	85 A
Color:	Black
Country of Origin:	MX
Dimensions:	0.93 in W x 3.08 in D x 2.81 in H
Material:	Polycarbonate
Primary Connections/Pole:	1
Secondary Connection/Pole:	4
Series:	MPDB
Short Circuit Current Rating:	100 kA
Voltage Rating:	600 VAC
Wire Size:	14 to 4 AWG
