MS10125J120 APN

Name: MS10125J120 APN
Brand: Appleton
SKU: MS10125J120 APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

MS10125J-120

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Description

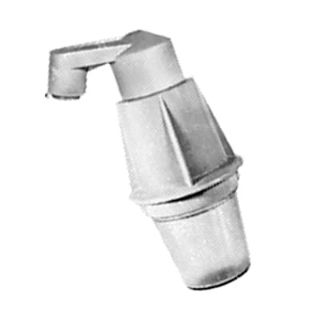

Appleton® Mercmaster™ Jr. HID Luminaire, Series: MS Series, 120 VAC, 115 W Fixture, 1.1 A Starting, 1 A Operating, High Pressure Sodium Lamp, 100 W Lamp, Medium Lamp Base, ANSI S54/Intregral/HPF Ballast, Glass Lens, 25 deg Stanchion Mounting, Copper Free Aluminum Housing Material, Epoxy Powder Coated Housing Finish

Application

Tunnels, Walkways, Bridges, Storage Facilities, Processing Plants, Parking Lots, Foundries, Manufacturing Plants, Power Plants and Other Locations Where Moisture, Dirt, Dust or Corrosive Atmospheres are Encountered and Hazardous Locations Applications

Standards

UL 1598/1598A/844 File No. E10444 | Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III

Features

Wireless design, threading the fixture unit onto the mounting hood makes the electrical connection
The only wiring required is attaching two wires to connection block in mounting hood
Safe, easy servicing without disconnecting any wiring
Standard pendant mounting hood for rigid or flexible mounting
Balanced round design automatically hangs plumb when used with flexible hanger
Unitized construction reduces installation and maintenance costs
Ballast has standard non-PCB biodegradable capacitors
Porcelain socket ensures trouble free operation in high ambient installations
Prismatic glass globe or refractor is standard and threads directly into fixture housing eliminates glare and provides uniform light distribution

Specifications

Amperage Rating:	1.1 A Starting, 1 A Operating
Ballast Type:	ANSI S54/Intregral/HPF
Country of Origin:	MX
Fixture Wattage:	115 W
Housing Finish:	Epoxy Powder Coated
Housing Material:	Copper Free Aluminum
Lamp Base Type:	Medium
Lamp Type:	High Pressure Sodium
Lamp Wattage:	100 W
Lens Type:	Glass
Mounting Type:	25 deg Stanchion
Series:	MS Series
Voltage Rating:	120 VAC
