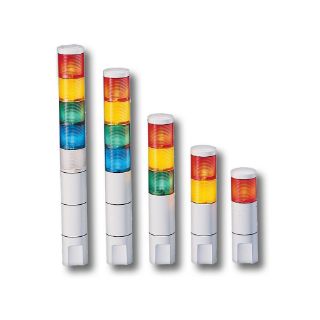

Picture of MSL3-024 FSG
Actual Product May Vary From Image

MSL3-024 FSG

Federal Signal MicroStat® MSL3-024 MSL Status Indicator Stack Light, 24 VAC/VDC, Wedge Lamp, 3 Lights, Amber/Blue/Clear/Green/Red, 7000 hr
Manufacturer: Federal Signal
Manufacturer part number: MSL3-024
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 1
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$329.23

Product Details

Brand Name

Federal Signal

Description

The Federal Signal MicroStat® is a compact, type 4X status indicator, type 1 with optional sounder. Ideal for OEM applications, the MicroStat® comes pre-assembled as 1, 2, 3, 4 or 5-high light units. The user selects combinations from five colors, amber, blue, clear, green and red. O-rings between each segment provide a water-tight and dust-tight seal. The MSL1, MSL2, MSL3 are available in 24 VAC/VDC, 120 VAC and 240 VAC, the MSL4 and MSL5 are available in 24 VAC/VDC and 120 VAC. The base of each light can be surface or pipe mounted (3/4 in NPT).
Federal Signal MicroStat® Status Indicator Stack Light, Series: MSL, 24 VAC/VDC, 0.6 A, 5.6 W, 3 Lights, Wedge Lamp, Amber/Blue/Clear/Green/Red, 7000 hr Average Life, Surface Mount, 4X, 32 to 104 deg F, Polycarbonate, 2.2 in W x 2.2 in D x 12.5 in H

Application

Indoor Applications

Standards

BAA Compliant | cUL Listed | UL Listed

Features

  • Factory assembled
  • Small footprint only 2.2 in Dia
  • Vibration resistant 5.6 W wedge lamp
  • PLC compatible
  • 3/4 in NPT pipe/surface mounting

Specifications

Amperage Rating:0.6 A
Average Life:7000 hr
Color:Amber/Blue/Clear/Green/Red
Country of Origin:US
Dimensions:2.2 in W x 2.2 in D x 12.5 in H
Lamp Type:Wedge
Material:Polycarbonate
Mounting Type:Surface
NEMA Rating:4X
Number of Lights:3
Series:MSL
Temperature Rating:32 to 104 deg F
Voltage Rating:24 VAC/VDC
Wattage:5.6 W
