MVI46-MBP PRS

Name: MVI46-MBP PRS
Brand: Prosoft Technology
SKU: MVI46-MBP PRS
Availability: OutOfStock

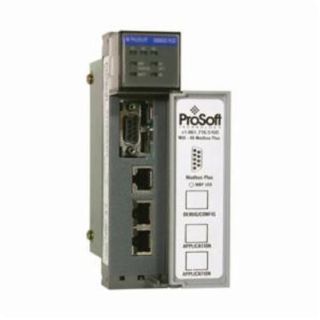

Actual Product May Vary From Image

Product Details

Manufacturer:

Prosoft Technology

Manufacturer part number:

MVI46-MBP

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

InRAx®

Type

Dual Port Network Interface

Description

The MVI46 Modbus Plus Dual Port Network Interface Module allow Rockwell Automation SLC processors to connect directly on Modbus Plus networks as a peer. The module acts as an input/output module between the Modbus Plus network and the processor. Compatible devices can be found in most industries and include devices such as drives, relays and power monitor hardware.

InRAx® Communication Module, Dual Port Network Interface, Series: MVI46, 5 VDC, 20 mA

Application

Foreign Device Data Concentrator, Pipelines and Offshore Platforms, Food Processing, Mining, Mining, Pulp and Paper

Standards

cUL and UL Listed

Features

Compatible devices include not only Modicon PLCs (most of which support the Modbus Plus protocol) but also a wide assortment of end devices licensed through the ModConnect Program
The MVI46-MBP module acts as an input/output module between the Modbus Plus network and the Rockwell Automation backplane
The data transfer from the SLC processor is asynchronous from the actions on the Modbus Plus network
A 4000-word register space in the module exchanges data between the processor and the Modbus Plus network
These modules allow Rockwell Automation platforms to connect directly on Modbus Plus networks as a peer. In addition, the modules act as slaves to processors that must read/write data from the module's memory
Crossing all industrial boundaries, potential applications include the connection of Rockwell Automation processors to Modicon processors, and the connection of Modbus Plus-speaking devices, such as drives, relays, and power monitor hardware, to the Rockwell Automation backplanes
Single Slot - 1746 backplane compatible (Local or extended I/O rack only. Remote rack not supported)
The module is recognized as an input/output module and has access to processor memory for data transfer between processor and module using M0/M1 files
Ladder Logic is used for data transfer between module and processor
Configuration data obtained from configuration text file downloaded to module

Specifications

Amperage Rating:	20 mA
Country of Origin:	US
Series:	MVI46
Voltage Rating:	5 VDC
