MVI56E-MNETC PRS

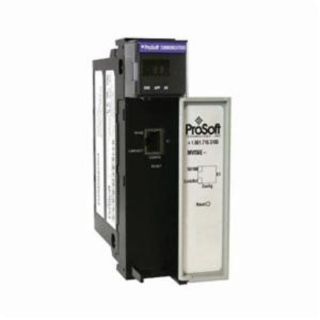

Picture of MVI56E-MNETC PRS
Actual Product May Vary From Image

Product Details

Manufacturer:
Prosoft Technology
Manufacturer part number:
MVI56E-MNETC
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,679.00 / EA

Description

Brand Name

InRAx®

Type

Client/Server Network Interface

Description

The Modbus TCP/IP Multi Client/Server Enhanced Communications Module allows Rockwell Automation ControlLogix Programmable Automation Controllers (PACs) to interface easily with Modicon Programmable Automation Controller (PACs) , as well as multiple Modbus TCP/IP server-compatible instruments and devices. The multi-Client module improves performance when controlling multiple servers on a Modbus TCP/IP network, by supporting up to 30 Clients. It also supports up to 20 server connections (10MNET, 10 MBAP). MVI56E enhancements include configuration and management through the modules Ethernet port, and CIPconnect technology for bridging though ControlNet™ and Ethernet/IP™ networks.
InRAx® Enhanced Communication Module, Client/Server Network Interface, Series: MVI56E, 5/24 VDC, 3/800 mA, 32 to 140 deg F, Aluminum

Application

Power and Distribution Applications, Petrochemical, Water and Gas Applications, SCADA and DCS Applications

Standards

cUL and UL Listed

Features

  • Faster response for multi-server applications
  • Minimizes impact to other server communications when one server device goes offline
  • Server capability provides access for HMIs, SCADA or DCS systems
  • The module communication is integrated with RSLogix 5000 using a supplied Add-On Instruction (AOI) or ladder file
  • No additional PAC/PLC programming required
  • Programmatically enable various networked devices and their functions to support multiple applications or recipes, without having to reconfigure the module
  • Easy-to-use Windows-based configuration software connects through remote racks using EtherNet/IP and/or ControlNet via a 1756-ENxT and/or 1756-CNB interface module without requiring RSLinx, saving you money
  • Allows support of IT and Automation network segmentation
  • Assists in extending current MVI56 applications by using newer technology that supports existing MVI56 ladder logic and module configuration
  • Backward compatible with previous MVI56-MNETC versions
  • Single-slot 1756 ControlLogix backplane compatible
  • 10/100 Mbps auto crossover detection Ethernet configuration and application port
  • User-definable module data memory mapping of up to 10,000 16-bit registers
  • CIPconnect-enabled network configuration and diagnostics monitoring using ControlLogix 1756-ENxT and 1756-CNB modules
  • ProSoft Configuration Builder (PCB) software supported, a Windows-based graphical user interface providing simple product and network configuration
  • Sample ladder logic and Add-On Instructions (AOI) are used for data transfer between module and processor
  • 4-character, alpha-numeric, scrolling LED display of status and diagnostics data in plain English " no cryptic error or alarm codes to decipher
  • ProSoft Discovery Service (PDS) software used to locate the module on the network and assign temporary IP address
  • Personality Module - a non-volatile industrial-grade Compact Flash (CF) card used to store network and module configuration for easy disaster recovery, allowing quick in-the-field product replacement by transferring the CF card
  • ProSoft Technology™s Modbus TCP/IP implementation (MNETC) includes both client (master) and server (slave) capabilities

Specifications

Amperage Rating:3/800 mA
Country of Origin:US
Material:Aluminum
Series:MVI56E
Temperature Rating:32 to 140 deg F
Voltage Rating:5/24 VDC

Products Specifications

Brand Name
ProSoft
Connectivity
TCP/IP
Protocol
TCP/IP
Type
Modbus Communication Module
