MVI56E-MNETR PRS

Name: MVI56E-MNETR PRS
Brand: Prosoft Technology
SKU: MVI56E-MNETR PRS
Price: 3,549.00 USD
Availability: OutOfStock

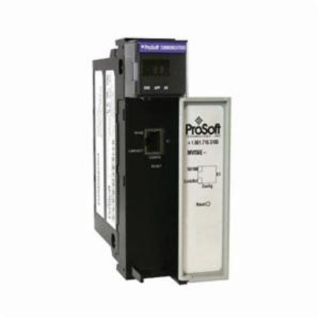

Actual Product May Vary From Image

Product Details

Manufacturer:

Prosoft Technology

Manufacturer part number:

MVI56E-MNETR

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$3,549.00 / EA

Description

Brand Name

InRAx®

Type

Client/Server Network Interface

Description

The Modbus TCP/IP Client/Server Enhanced Communication Module with Reduced Data Block allows Rockwell Automation ControlLogix processors to interface easily with Modbus TCP/IP-compatible devices, such as Modicon Programmable Automation Controllers (PACs) and a wide variety of Modbus TCP/IP-compatible instruments and devices. The MVI56E-MNETR uses a reduced Input/output (I/O) data image block size for transferring data between itself and a ControlLogix processor. This makes it ideal for remote rack applications using ControlNet or Ethernet/IP process networks. The module also works well for applications that require redundant ControlLogix processors. MVI56E-MNETR enhancements include local and remote configuration and diagnostics through the module's Ethernet port, CIPconnect technology for bridging though Rockwell Automation ControlNet and EtherNetIP networks, and an on-board web server for access to module documentation and sample program files.

InRAx® Enhanced Communication Module, Client/Server Network Interface, Series: MVI56E, 5/24 VDC, 3/800 mA, 32 to 140 deg F, Aluminum

Application

For CompactLogix System

Standards

cUL and UL Listed

Features

Upgrade earlier MVI56-MNETR modules without changing existing ladder logic programs or module configurations
Enhanced features and flexibility without incurring expensive reprogramming costs
Module communication is integrated within RSLogix 5000 using a sample Add-On Instruction (AOI) or sample ladder logic file
No additional programming and/or configuration software are required
Uses less bandwidth on process control networks like ControlNet or EtherNet/IP
Optimizes communication for more efficient remote rack installations, especially when using redundant ControlLogix processors
ProSoft Configuration Builder (PCB) provides online or offline configuration and online diagnostics using the high-speed Ethernet port
CIPconnect-enabled, allows remote configuration and diagnostic access across multiple bridged EtherNet/IP and ControlNet networks using Rockwell Automation 1756-ENxT and 1756-CNB network interface modules
Module's built-in Ethernet port provides a web server for local access to documentation, module status, and firmware updates
ProSoft Discovery Service, a software utility to locate MVI56E modules on the network and assign a temporary IP address for easy configuration
Backward-compatible with previous MVI56-MNETR versions
Single-Slot ControlLogix backplane compatible
10/100 Mbps auto crossover detection Ethernet configuration and application port
User definable module data memory mapping of up to 5000, 16-bit registers
CIPconnect-enabled network configuration and diagnostics monitoring using ControlLogix 1756-ENxT and 1756-CNB modules and EtherNet/IP pass-through communication
Reduced I/O image size designed specifically to optimize remote rack implementations
ProSoft Configuration Builder (PCB) software supported, a Windows-based graphical user interface providing simple product and network configuration
Sample ladder logic and Add-On Instructions (AOIs) are used for data transfer between module and processor
Internal web server provides access to product documentation, module status, diagnostics, and firmware updates
4-character alpha-numeric scrolling LED display of status and diagnostics data in plain English - no cryptic error or alarm codes to decipher

Includes

Sample Ladder File

Specifications

Amperage Rating:	3/800 mA
Country of Origin:	US
Material:	Aluminum
Series:	MVI56E
Temperature Rating:	32 to 140 deg F
Voltage Rating:	5/24 VDC
