MXS20-100 SMC

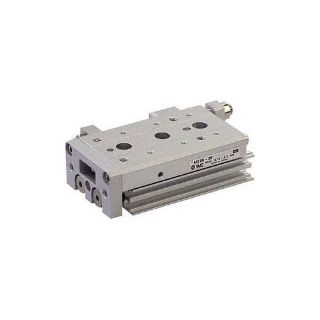

Picture of MXS20-100 SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
MXS20-100
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$514.90 / EA

Description

Brand Name

SMC®

Description

SMC®, MXS20-100, Precision Slide Table, Series: MXS, 20 mm Cylinder Bore, 100 mm Stroke Length, 440 N Push, 330 N Pull Maximum Force, Double Acting Cylinder Action, 1/8 in BSPT Port, 0.15 to 0.7 MPa Pressure, -10 to 60 deg C, 50 mm H x 76 mm W x 214 mm L Dimensions

Application

For prevents the slide table from dropping in vertical applications

Standards

RoHS Compliant

Features

  • Rubber bumper with stroke adjuster
  • Shock absorber option
  • End lock option in the event of air pressure loss
  • PTFE grease or food grade grease option
  • Auto switch capable

Specifications

Country of Origin:JP
Cylinder Action:Double Acting
Cylinder Bore Size:20 mm
Dimensions:50 mm H x 76 mm W x 214 mm L
Maximum Force:440 N Push, 330 N Pull
Port Size:1/8 in BSPT
Pressure Rating:0.15 to 0.7 MPa
Series:MXS
Stroke Length:100 mm
Temperature Rating:-10 to 60 deg C

Products Specifications

Bore Size
20 mm
Brand Name
SMC
Stroke
100 mm
