MXS25-50 SMC

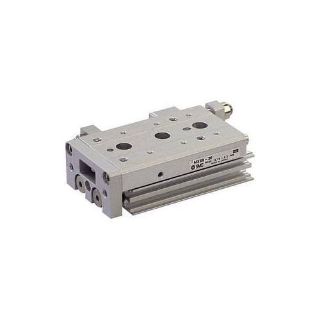

Picture of MXS25-50 SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
MXS25-50
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 4 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$461.25 / EA

Description

Brand Name

SMC®

Description

SMC®, MXS25-50, Precision Slide Table, Series: MXS, 25 mm Cylinder Bore, 50 mm Stroke Length, 687 N Push, 529 N Pull Maximum Force, Double Acting Cylinder Action, 1/8 in BSPT Port, 0.15 to 0.7 MPa Pressure, -10 to 60 deg C, 62 mm H x 92 mm W x 131 mm L Dimensions

Application

For prevents the slide table from dropping in vertical applications

Standards

RoHS Compliant

Features

  • Rubber bumper with stroke adjuster
  • Shock absorber option
  • End lock option in the event of air pressure loss
  • PTFE grease or food grade grease option
  • Auto switch capable

Specifications

Country of Origin:JP
Cylinder Action:Double Acting
Cylinder Bore Size:25 mm
Dimensions:62 mm H x 92 mm W x 131 mm L
Maximum Force:687 N Push, 529 N Pull
Port Size:1/8 in BSPT
Pressure Rating:0.15 to 0.7 MPa
Series:MXS
Stroke Length:50 mm
Temperature Rating:-10 to 60 deg C

Products Specifications

Bore Size
25 mm
Brand Name
SMC
Stroke
50 mm
