MXS6-10A SMC

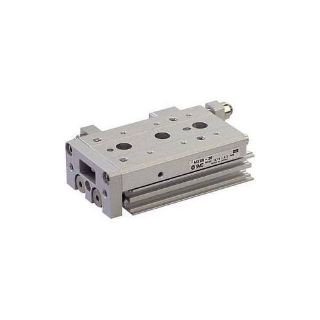

Picture of MXS6-10A SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
MXS6-10A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 4 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$259.75 / EA

Description

Brand Name

SMC®

Type

Standard

Description

SMC®, MXS6-10A, Precision Slide Table, Standard, Series: MXS, 6 mm Cylinder Bore, 10 mm Stroke Length, 40 N Push, 29 N Pull Maximum Force, Double Acting Cylinder Action, M3x0.5 Port, 0.15 to 0.7 MPa Pressure, -10 to 60 deg C

Application

For prevents the slide table from dropping in vertical applications

Standards

RoHS Compliant

Features

  • Rubber bumper with stroke adjuster
  • Shock absorber option
  • End lock option in the event of air pressure loss
  • PTFE grease or food grade grease option
  • Auto switch capable

Specifications

Country of Origin:US
Cylinder Action:Double Acting
Cylinder Bore Size:6 mm
Maximum Force:40 N Push, 29 N Pull
Port Size:M3x0.5
Pressure Rating:0.15 to 0.7 MPa
Series:MXS
Stroke Length:10 mm
Temperature Rating:-10 to 60 deg C

Products Specifications

Bore Size
6 mm
Brand Name
SMC
Stroke
10 mm
