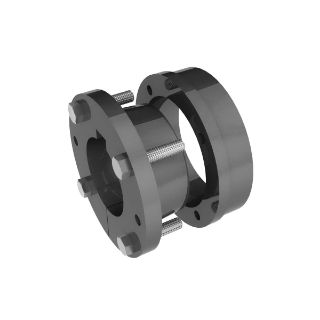

MXT15 1 1/4 MSG

Name: MXT15 1 1/4 MSG
Brand: Martin Sprocket & Gear
SKU: MXT15 1 1/4 MSG
Price: 82.51 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

MXT15 1 1/4

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 4 days

Estimated dates are contingent upon manufacturer stock.

$82.51 / EA

Description

Brand Name

Martin

Description

Martin's MXT® bushings are available from stock to fit all popular pulley sizes. Martin stocks MXT® bushings in a wide range of bore sizes per hub. The MXT® bushing offers a 2 in/ft taper, which reduces end disc pre-stressing, as well as increasing clamping force. All bushings size 50 and larger feature full depth keys.

Martin MXT® Conveyor Bushing, 1-1/4 in Bore Dia, 2 in Barrel Dia, 3.19 in Hub Dia, 2-7/16 in Bolt Circle, 3/8 in Flange Thickness, 4 Bolt Holes, 1/4 x 1 in Screw, For Use With: MXTH-15 XT Hub, 1-1/8 in Overall Length, 1/4 x 1/8 in Keyway, Cast Iron

Application

For conveyor pulley applications

Standards

CEMA Standard

Features

Specially designed taper requires minimal axial movement of the hub and end disc during installation
M-HE Bushings are also available from stock. The M-HE bushing system offers 3 in per foot taper
All series bushings are available in a wide range of bore sizes per hub

Specifications

Barrel Diameter:	2 in
Bolt Circle Diameter:	2-7/16 in
Bore Diameter:	1-1/4 in
Country of Origin:	US
Flange Thickness:	3/8 in
Hub Diameter:	3.19 in
Keyway Size:	1/4 x 1/8 in
Material:	Cast Iron
Number of Bolt Holes:	4
Overall Length:	1-1/8 in
Screw Size:	1/4 x 1 in
Suitable For Use With:	MXTH-15 XT Hub
