MXT25 1 7/16 MSG

Name: MXT25 1 7/16 MSG
Brand: Martin Sprocket & Gear
SKU: MXT25 1 7/16 MSG
Price: 85.89 USD
Availability: OutOfStock

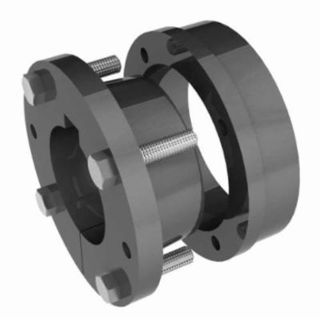

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

MXT25 1 7/16

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 4 days

Estimated dates are contingent upon manufacturer stock.

$85.89 / EA

Description

Brand Name

Martin

Description

Martin's MXT® bushings are available from stock to fit all popular pulley sizes. Martin stocks MXT® bushings in a wide range of bore sizes per hub. The MXT® bushing offers a 2 in/ft taper, which reduces end disc pre-stressing, as well as increasing clamping force. All bushings size 50 and larger feature full depth keys.

Martin MXT® Conveyor Bushing, 1-7/16 in Bore Dia, 3.188 in Barrel Dia, 4.69 in Hub Dia, 3-3/4 in Bolt Circle, 5/8 in Flange Thickness, 4 Bolt Holes, 3/8 x 1-3/4 in Screw, For Use With: MXTH-25 XT Hub, 1-7/8 in Overall Length, 3/8 x 3/16 in Keyway, Cast Iron

Application

For conveyor pulley applications

Standards

CEMA Standard

Features

Specially designed taper requires minimal axial movement of the hub and end disc during installation
M-HE Bushings are also available from stock. The M-HE bushing system offers 3 in per foot taper
All series bushings are available in a wide range of bore sizes per hub

Specifications

Barrel Diameter:	3.188 in
Bolt Circle Diameter:	3-3/4 in
Bore Diameter:	1-7/16 in
Country of Origin:	US
Flange Thickness:	5/8 in
Hub Diameter:	4.69 in
Keyway Size:	3/8 x 3/16 in
Material:	Cast Iron
Number of Bolt Holes:	4
Overall Length:	1-7/8 in
Screw Size:	3/8 x 1-3/4 in
Suitable For Use With:	MXTH-25 XT Hub
