MXT35 3 7/16 MSG

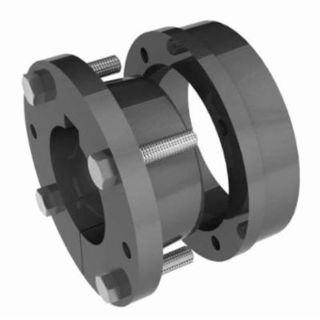

Picture of MXT35 3 7/16 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
MXT35 3 7/16
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 4 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$109.97 / EA

Description

Brand Name

Martin

Description

Martin's MXT® bushings are available from stock to fit all popular pulley sizes. Martin stocks MXT® bushings in a wide range of bore sizes per hub. The MXT® bushing offers a 2 in/ft taper, which reduces end disc pre-stressing, as well as increasing clamping force. All bushings size 50 and larger feature full depth keys.
Martin MXT® Conveyor Bushing, 3-7/16 in Bore Dia, 4.688 in Barrel Dia, 6.565 in Hub Dia, 5-7/16 in Bolt Circle, 25/32 in Flange Thickness, 4 Bolt Holes, 1/2 x 1-3/4 in Screw, For Use With: MXTH-35 XT Hub, 2-15/32 in Overall Length, 7/8 x 5/16 in Keyway, Cast Iron

Application

For conveyor pulley applications

Standards

CEMA Standard

Features

  • Specially designed taper requires minimal axial movement of the hub and end disc during installation
  • M-HE Bushings are also available from stock. The M-HE bushing system offers 3 in per foot taper
  • All series bushings are available in a wide range of bore sizes per hub

Specifications

Barrel Diameter:4.688 in
Bolt Circle Diameter:5-7/16 in
Bore Diameter:3-7/16 in
Country of Origin:US
Flange Thickness:25/32 in
Hub Diameter:6.565 in
Keyway Size:7/8 x 5/16 in
Material:Cast Iron
Number of Bolt Holes:4
Overall Length:2-15/32 in
Screw Size:1/2 x 1-3/4 in
Suitable For Use With:MXTH-35 XT Hub
