MXT40 3 7/16 MSG

Name: MXT40 3 7/16 MSG
Brand: Martin Sprocket & Gear
SKU: MXT40 3 7/16 MSG
Price: 147.79 USD
Availability: OutOfStock

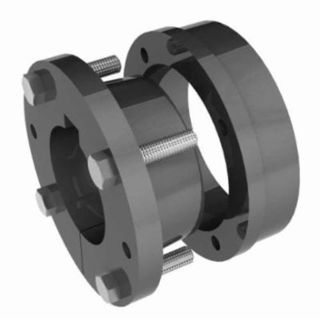

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

MXT40 3 7/16

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$147.79 / EA

Description

Brand Name

Martin

Description

Martin's MXT® bushings are available from stock to fit all popular pulley sizes. Martin stocks MXT® bushings in a wide range of bore sizes per hub. The MXT® bushing offers a 2 in/ft taper, which reduces end disc pre-stressing, as well as increasing clamping force. All bushings size 50 and larger feature full depth keys.

Martin MXT® Conveyor Bushing, 3-7/16 in Bore Dia, 5.313 in Barrel Dia, 7.563 in Hub Dia, 6-1/8 in Bolt Circle, 3/8 in Flange Thickness, 4 Bolt Holes, 9/16 x 2 in Screw, For Use With: MXTH-40 XT Hub, 2-13/16 in Overall Length, 7/8 x 7/16 in Keyway, Cast Iron

Application

For conveyor pulley applications

Standards

CEMA Standard

Features

Specially designed taper requires minimal axial movement of the hub and end disc during installation
M-HE Bushings are also available from stock. The M-HE bushing system offers 3 in per foot taper
All series bushings are available in a wide range of bore sizes per hub

Specifications

Barrel Diameter:	5.313 in
Bolt Circle Diameter:	6-1/8 in
Bore Diameter:	3-7/16 in
Country of Origin:	US
Flange Thickness:	3/8 in
Hub Diameter:	7.563 in
Keyway Size:	7/8 x 7/16 in
Material:	Cast Iron
Number of Bolt Holes:	4
Overall Length:	2-13/16 in
Screw Size:	9/16 x 2 in
Suitable For Use With:	MXTH-40 XT Hub
