N 4 3/16 MSG

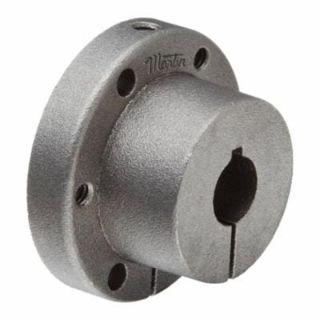

Picture of N 4 3/16 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
N 4 3/16
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,043.61 / EA

Description

Brand Name

Martin

Type

Standard

Description

QD (quick detachable) bushings are designed for conventional mounting or reverse mounting. These bushings have a flange.
Martin QD Bushing, Standard, 4-3/16 in Bore Dia, 7 in Barrel Dia, 12 in Hub Dia, 8-1/2 in Bolt Circle, 10 in Flange Dia, 1-1/2 in Flange Thickness, 4 Bolt Holes, 7/8-9 x 8 in Screw, 150000 in-lb, 8-1/8 in Overall Length, 1/2 x 1 in Keyway, Cast Iron

Features

  • Size N bushing
  • QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
  • These bushings have a flange
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ QD bushings

Specifications

Barrel Diameter:7 in
Bolt Circle Diameter:8-1/2 in
Bore Diameter:4-3/16 in
Country of Origin:US
Flange Diameter:10 in
Flange Thickness:1-1/2 in
Hub Diameter:12 in
Keyway Size:1/2 x 1 in
Material:Cast Iron
Number of Bolt Holes:4
Overall Length:8-1/8 in
Screw Size:7/8-9 x 8 in
Torque Rating:150000 in-lb

Products Specifications

Brand Name
Martin Sprocket & Gear
