N162 MAR

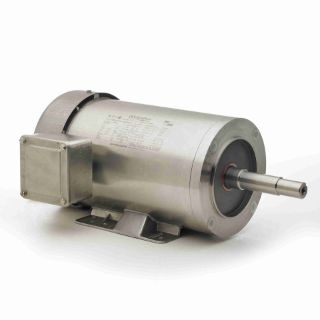

Picture of N162 MAR

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

N162

CBT Inventory

0

Vendor Inventory

Loading...

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

215TTWD14002

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	24.5
CE:	Y
Connection Drawing Number:	005010.01ME
Country of Origin:	Mexico
CSA:	Y
Current:	24/12
DE Bearing Size:	6209
DE Bearing Type:	BALL
Duty:	CONTINUOUS
Efficiency:	89.5
Electrical Type:	SQ CAGE INV RATED
Enclosure Type:	TEFC
Frame Material:	STAINLESS STEEL
Frame Size:	215
Frame Suffix:	JM
Frame Type:	215JM
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	10
Insulation Class:	F
IP Code:	56
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	HORIZONTAL
Mounting Type:	RIGID
NEMA Design:	B
Number of Poles:	2
ODE Bearing Size:	6207
ODE Bearing Type:	BALL
Outline Drawing Number:	NONE
Phases:	3
Power Factor:	87
Power Rating (HP):	10
Power Rating (kW):	7.50
Resistance Main:	0.98
Rotation:	REV
Service Factor:	1.15
Shaft Diameter (IN):	1.38
Shaft Extension:	4.28
Shaft Type:	JM
Speed:	3525
Speed Max:	3525
Starting Type:	LINE OR INVERTER
Type of Overload Protector:	NONE
UL:	Recognized
Voltage:	230/460

Resources

Engineering Drawing Spec Sheet
