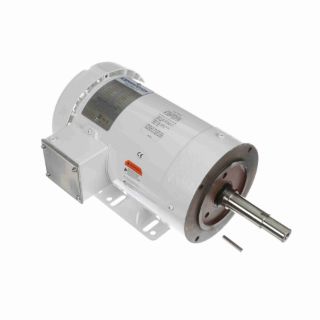

N203A MAR

Name: N203A MAR
Brand: Marathon Electric Motors
SKU: N203A MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

N203A

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

143TTWR16027

Features

Motors are suitable for 10:1 VT and 10:1 CT MAX GUARD® Class F insulation system 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power Double sealed ball bearings 303 Stainless steel shaft with spring loaded contact seals in each endshield Stainless steel conduit box cover, nameplate, fan guard (TEFC) and hardware Cast oversized conduit box with high temperature nitrile gaskets and threaded entrance Plugged drain holes in each endshield for all angle mounting Internal corrosion resistant coatings on frame, base, endshields, rotor and stator

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	15.93
CE:	Y
Connection Drawing Number:	005010.01
Country of Origin:	United States of America
CSA:	Y
Current:	4.8/2.4
DE Bearing Size:	6206
DE Bearing Type:	BALL
Duty:	Continuous
Efficiency:	86.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	7.5
Frame Material:	Rolled Steel
Frame Size:	143
Frame Suffix:	JM
Frame Type:	143JM
Frequency:	60
HP:	1.50
Insulation Class:	F
IP Code:	56
KVA Code:	L
Max Ambient:	40°C
Motor Orientation:	HORIZONTAL
Mounting Type:	Rigid base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	607-0013ME-750
Phases:	3
Power Factor:	67.7
Power Rating (HP):	1.50
Power Rating (kW):	1.1
Resistance Main:	9.12
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.166
Shaft Extension:	3.63
Shaft Type:	JM
Speed:	1750
Speed Max:	1750
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
